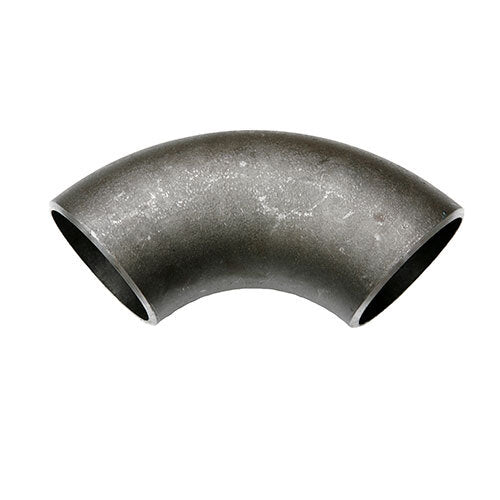

AAP Buttweld 90 Degree Long Radius Elbow, 2"

This AAP buttweld 90° long radius elbow is made to JIS B 2311 (SGP). It is supplied in 7 sizes, 2" (50mm) to 8" (200mm). A long radius elbow turns the pipe run through 90° with a gradual bend. It is welded end to end with the pipe. It is made to JIS B 2311 (SGP) rather than to ASTM A234.

The buttweld range is carbon alloy steel to ASTM A234 for use in various piping systems. Advantages of buttweld: a welded fitting is permanently leak proof, the continuous metal between pipe and fitting adds strength, the smoother inner surface and gradual direction changes reduce pressure loss, turbulence, corrosion and abrasion, and a welded system uses a minimum of space.

Where this product is used

• Pipework where a welded, permanently leak proof joint is wanted
• Changing the direction of a welded pipe run through 90°
• Pipework made to JIS B 2311 dimensions

Features

• 7 sizes, 2" (50mm) to 8" (200mm)
• Butt weld ends, JIS B 2311

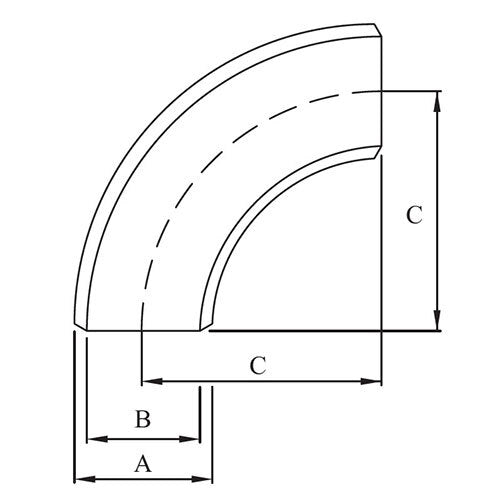

• Wall thickness given for every size
• Weight class: SGP

Key specifications

Choosing the right option

Match the wall thickness to the pipe you are welding to.

Related AAP products: AAP Buttweld 90 Degree Short Radius Elbow, SGP, AAP Buttweld 45 Degree Long Radius Elbow, SGP, AAP Buttweld Equal Tee, SGP, AAP Buttweld Concentric Reducer, SGP.
