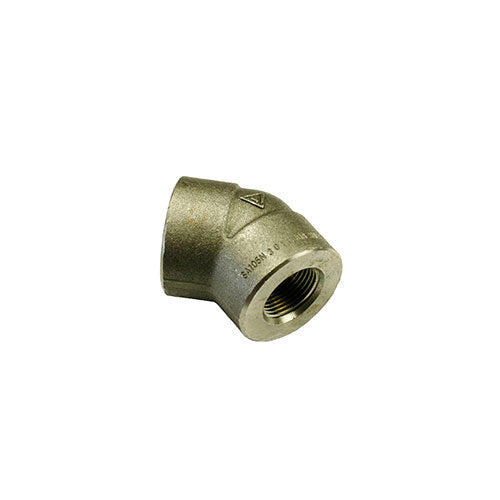

AAP 3000lb 45 Degree Threaded Elbow, 1/2"

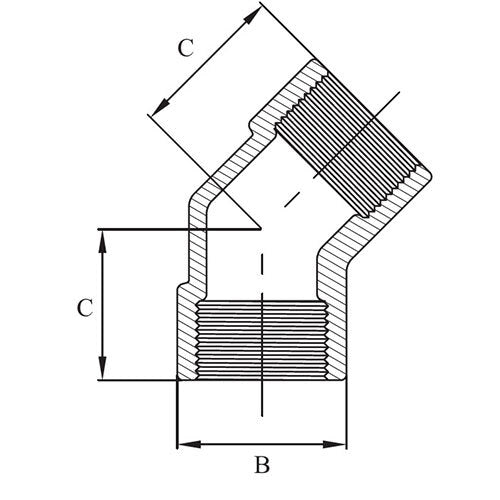

This AAP 45° threaded elbow is a forged carbon steel fitting with BSPT thread and a black finish. It is supplied in 6 sizes, 1/2" (15mm) to 2" (50mm). A 45° elbow changes the direction of a pipe run by 45°. This one is threaded inside at both ends. B is the outside diameter and C is the centre to end dimension.

The threaded high pressure fittings are rated at 3000 lb. Standards for the range include ASTM A105 carbon steel forgings.

Where this product is used

• High pressure threaded pipework in carbon steel
• Offsetting or changing direction by 45° in threaded pipework
• Easing a bend where a 90° turn is too tight

Features

• 6 sizes, 1/2" (15mm) to 2" (50mm)
• 3000 lb forged carbon steel, ASME B16.11-2009
• BSPT, black
• Thread: BSPT taper threads to AS 1722.1 / ISO 7

Key specifications

Choosing the right option

Choose the size and thread to match your pipework (NPT or BSPT cannot be mixed), and check the thread gender at each end against the fitting it joins.
