AAP 3000lb 316 Stainless Socket Weld 90 Degree Elbow, 1/2"

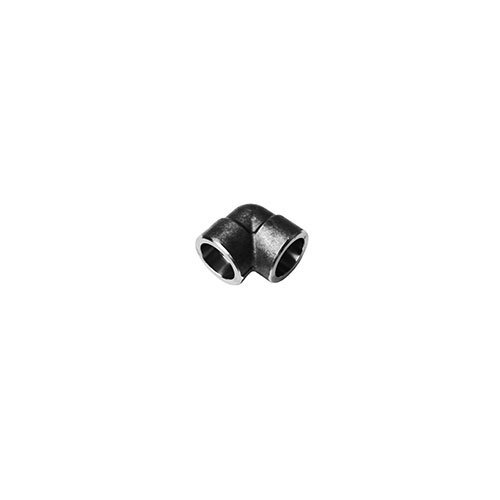

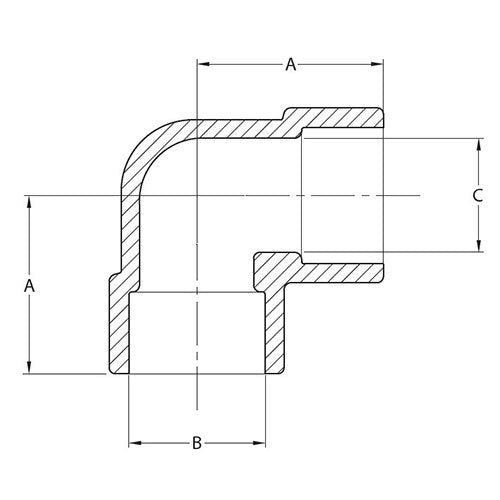

This AAP socket weld 90° elbow is a 316/316L stainless steel forged fitting. It is supplied in 6 sizes, 1/2" (15mm) to 2" (50mm). A 90° elbow turns a pipe run through a right angle. This one has a socket at each end: the pipe is inserted into the socket and welded. A is the centre to end dimension, B the socket bore diameter and C the bore of the fitting.

The stainless steel high pressure fittings are rated at 3000 lb.

Where this product is used

• High pressure stainless steel pipework
• Turning welded stainless steel pipework through 90°
• Pipework where a socket weld joint is preferred to a threaded one

Features

• 6 sizes, 1/2" (15mm) to 2" (50mm)
• 316/316L stainless steel, ASME B16.11-2009
• 3000 lb rating
• Ends: Socket weld

Key specifications

Choosing the right option

Choose the size to match your pipe, and weld the pipe into the socket in line with your site welding procedure.
