AAP 3000lb 316 Stainless 90 Degree Threaded Elbow, 1/4"
Available

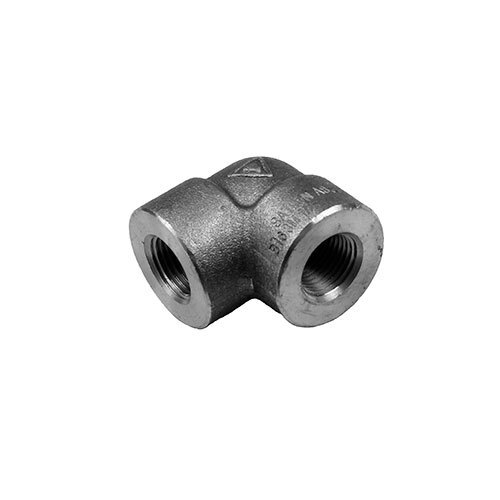

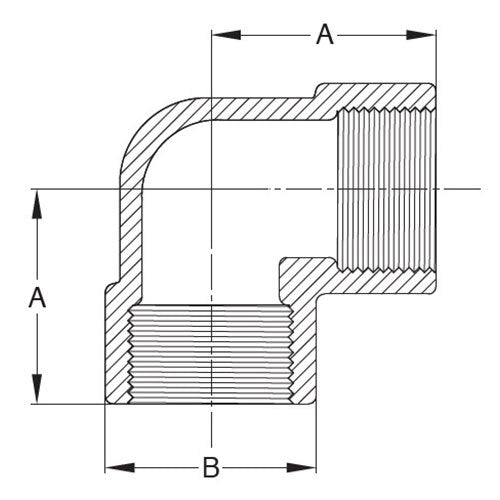

This AAP 90° threaded elbow is a 316/316L stainless steel forged fitting with NPT thread. It is supplied in 8 sizes, 1/4" (8mm) to 2" (50mm). A 90° elbow turns a pipe run through a right angle. This one is threaded inside at both ends (female by female). A is the centre to end dimension and B is the outside diameter, both lettered on the AAP drawing.
The stainless steel high pressure fittings are rated at 3000 lb.
Where this product is used
- High pressure stainless steel pipework
- Turning threaded stainless steel pipework through 90°
- Joining two male threaded pipes at a right angle
Features
- 8 sizes, 1/4" (8mm) to 2" (50mm)
- 316/316L stainless steel, ASME B16.11-2009
- 3000 lb rating
- NPT
Key specifications
| Specification | Detail |
|---|---|
| Brand | AAP |
| Product | 90° threaded elbow, 316/316L stainless steel forged |
| Thread | NPT taper threads to ANSI B1.20.1 |
| Rating | 3000 lb, threaded end |
| Applicable standard | ASME B16.11-2009 |
| Material | 316/316L stainless steel forging (ASTM A182) |
| Marking | Sizes 3/8" and under: brand only. 1/2" to 4": brand, material, heat number, B16, pressure and size |
| Sizes | 1/4" (8mm) to 2" (50mm) (8 sizes) |
Choosing the right option
Choose the size and thread to match your pipework (NPT or BSPT cannot be mixed), and check the thread gender at each end against the fitting it joins.
Related AAP products: AAP 3000lb 316 Stainless Threaded Equal Tee, NPT, AAP 3000lb 316 Stainless Threaded Coupling, NPT, AAP 3000lb 316 Stainless Hexagon Plug, NPT, AAP 3000lb 316 Stainless Socket Weld 90 Degree Elbow.
| Option | Part number | SKU |
|---|---|---|
| 1/4" | PSTE08 | A0079889 |
| 1/2" | PSTE15 | A0079891 |
| 1" | PSTE25 | A0079893 |
| 1-1/4" | PSTE32 | A0079894 |
| 1-1/2" | PSTE40 | A0079895 |
| 2" | PSTE50 | A0079896 |
| 3/8" | PSTE10 | A0079890 |
| 3/4" | PSTE20 | A0079892 |
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
AAP 3000lb 316 Stainless 90 Degree Threaded Elbow, NPT: 1/4"
SKU: A0079889 | Model: PSTE08
AAP PSTE08: AAP 3000lb 316 Stainless 90 Degree Threaded Elbow, 1/4". Pipe Size (inch): 1/4. Pipe Size (mm): 8. Center To End (A): 25.
