AAP 90deg M/F Reducing Elbow Galvanised Malleable 1

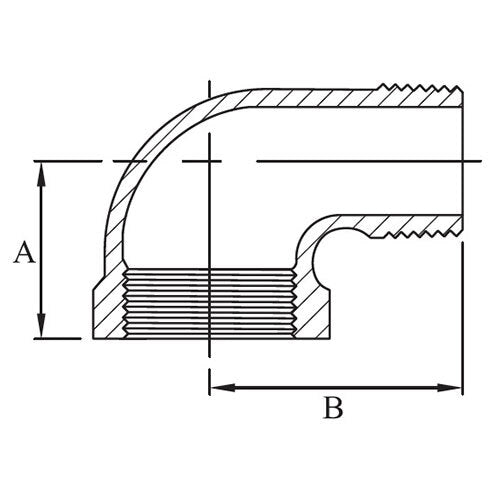

AAP 90deg M/F Reducing Elbow Galvanised Malleable 2

AAP 1/4" (8mm) 90° M/F Reducing Elbow Gal Malleable Iron LEMF08

AAP 3/8" (10mm) 90° M/F Reducing Elbow Gal Malleable Iron LEMF10

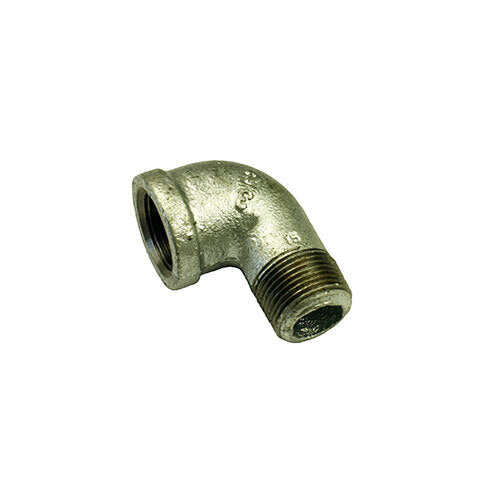

AAP 1/2" (15mm) 90° M/F Reducing Elbow Gal Malleable Iron LEMF15

AAP 3/4" (20mm) 90° M/F Reducing Elbow Gal Malleable Iron LEMF20

AAP 1" (25mm) 90° M/F Reducing Elbow Gal Malleable Iron LEMF25

AAP 1-1/4" (32mm) 90° M/F Reducing Elbow Gal Malleable Iron LEMF32

AAP 1-1/2" (40mm) 90° M/F Reducing Elbow Gal Malleable Iron LEMF40

AAP 2" (50mm) 90° M/F Reducing Elbow Gal Malleable Iron LEMF50

AAP 2-1/2" (65mm) 90° M/F Reducing Elbow Gal Malleable Iron LEMF65

AAP 3" (80mm) 90° M/F Reducing Elbow Gal Malleable Iron LEMF80

AAP 4" (100mm) 90° M/F Reducing Elbow Gal Malleable Iron LEMF94

AAP 1/2" (15mm) 45° M/F Reducing Elbow Gal Malleable Iron LEMFF15

AAP 3/4" (20mm) 45° M/F Reducing Elbow Gal Malleable Iron LEMFF20

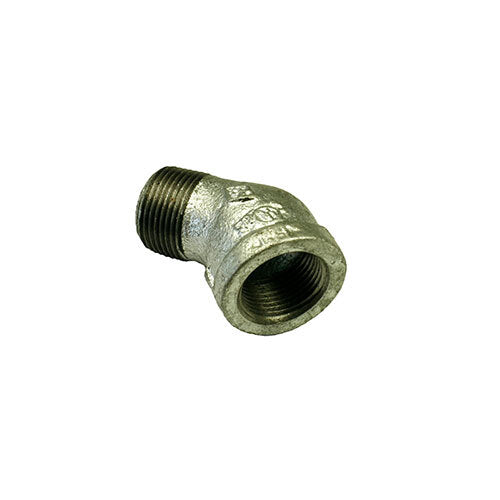

AAP 1" (25mm) 45° M/F Reducing Elbow Gal Malleable Iron LEMFF25

AAP 1-1/4" (32mm) 45° M/F Reducing Elbow Gal Malleable Iron LEMFF32

AAP 1-1/2" (40mm) 45° M/F Reducing Elbow Gal Malleable Iron LEMFF40

AAP 2" (50mm) 45° M/F Reducing Elbow Gal Malleable Iron LEMFF50

Specifications +

STANDARD AND IDENTIFICATION:

Standard for production and use EN 10242: 1994

Fittings made of high-quality blackheart malleable cast iron to ASTM A-197, ASTM A47

THREADS:

The threads are cut according to AS 1722.1 / ISO 7/1. Parallel internal thread (RP) and tapered external thread (R).

APPLICATION:

All the fittings are adequate for the supply of water at the recommended maximum working pressure of 1379kPa and gas, steam, and compressed air at the recommended maximum working pressure of 1034 kPa.
Note: Working pressures may also be limited by relevant pressure piping codes or Industry regulations.

DIMENSIONS:

All the fittings are manufactured to the speci?cations of standard BS EN 10242, BS 143, BS 1256

INSPECTION:

All the fittings are inspected for conformity with the speci?cations of standard EN 10242.

MARKING:

All the fittings, when possible, are marked with a brand and/or with the nominal size Identi?cation.

HOT DIP:

The fittings are delivered in hot-dip galvanized ?nish, as prescribed by the standard EN 10242.

LEAK TEST:

Applying the standard EN 10242 each individual ?tting is subjected to a pressure test with a min.
The hydrostatic pressure of 2068 kPa, which is equivalent to a pneumatic pressure of min. 500 kPa, without showing any sign of leakage or abnormality.

BRITISH STANDARD THREADS
All measurements in mm
NOMINAL BORE OF PIPE
APPROX. OUTSIDE DIAMETER
NUMBER OF THREADS PER INCH
PITCH
DEPTH OF THREADS
DIAMETER AT GAUGE PLANE
LENGTH OF USEFUL THREAD
IMPERIAL
METRIC
A
P
h
B
E
1/8
6
10.16
28
0.907
0.581
9.72
6.5
1/4
8
13.66
19
1.337
0.856
13.15
9.7
3/8
10
17.17
19
1.337
0.856
16.66
10.1
1/2
15
21.51
14
1.814
1.162
20.95
13.2
3/4
20
27
14
1.814
1.162
26.44
14.5
1
25
33.93
11
2.309
1.479
33.24
16.8
1-1/4
32
42.59
11
2.309
1.479
41.91
19.1
1-1/2
40
48.48
11
2.309
1.479
47.8
19.1
2
50
60.47
11
2.309
1.479
59.61
23.4
2/1/2
65
76.09
11
2.309
1.479
75.18
26.7
3
80
88.87
11
2.309
1.479
87.88
29.8
4
100
114.14
11
2.309
1.479
113.03
35.8
5
125
139.65
11
2.309
1.479
138.43
40.1
6
150
165.12
11
2.309
1.479
163.83
40.1

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

AAP 90deg M/F Reducing Elbow Galvanised Malleable

SKU: A0076921

Type: Pipe Fitting

$1.25

Inc. GST

The AAP 90deg M/F Reducing Elbow Galvanised Malleable by AAP is a Reducing Elbow with a hot-dip galvanised finish to EN 10242. It provides a recommended maximum working pressure of 1379kPa and is suitable for the supply of water.
