AAP 3000lb 90 Degree Threaded Elbow, 1/8"
Available

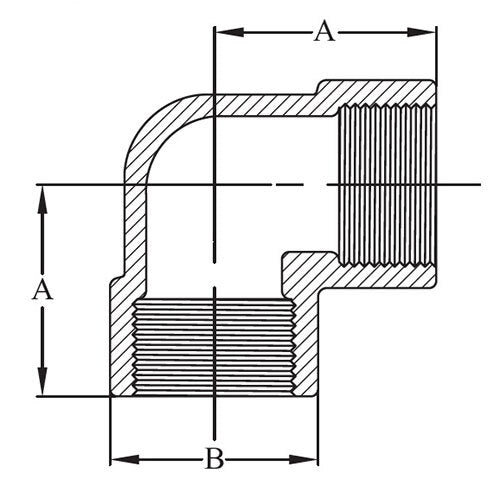

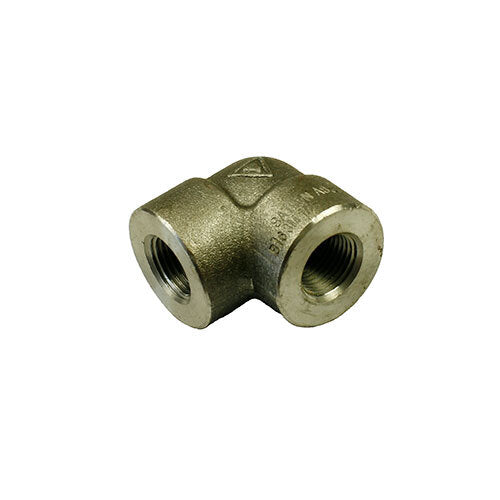

This AAP 90° threaded elbow is a forged carbon steel fitting with NPT thread and a black finish. It is supplied in 12 sizes, 1/8" (6mm) to 4" (100mm). A 90° elbow turns a pipe run through a right angle. This one is threaded inside at both ends (female by female). A is the centre to end dimension and B is the outside diameter, both lettered on the AAP drawing.
The threaded high pressure fittings are rated at 3000 lb. Standards for the range include ASTM A105 carbon steel forgings.
Where this product is used
- High pressure threaded pipework in carbon steel
- Turning threaded pipework through 90°
- Joining two male threaded pipes at a right angle
Features
- 12 sizes, 1/8" (6mm) to 4" (100mm)
- 3000 lb forged carbon steel, ASME B16.11-2009
- NPT, black
- Thread: NPT taper threads to ANSI B1.20.1
Key specifications
| Specification | Detail |
|---|---|
| Brand | AAP |
| Product | 90° threaded elbow, forged carbon steel |
| Thread | NPT taper threads to ANSI B1.20.1 |
| Finish | Black |
| Rating | 3000 lb, threaded end |
| Applicable standard | ASME B16.11-2009 |
| Material | Carbon steel forging (ASTM A105) |
| Marking | Sizes 3/8" and under: brand only. 1/2" to 4": brand, material, heat number, B16, pressure and size |
| Sizes | 1/8" (6mm) to 4" (100mm) (12 sizes) |
Choosing the right option
Choose the size and thread to match your pipework (NPT or BSPT cannot be mixed), and check the thread gender at each end against the fitting it joins.
Related AAP products: AAP 3000lb 45 Degree Threaded Elbow, NPT, Black, AAP 3000lb Threaded Equal Tee, NPT, Black, AAP 3000lb Threaded Coupling, NPT, Black, AAP 3000lb Threaded Union, NPT, Black.
| Option | Part number | SKU |
|---|---|---|
| 1/8" | PE06 | A0079379 |
| 1/4" | PE08 | A0079380 |
| 1/2" | PE15 | A0079382 |
| 1" | PE25 | A0079384 |
| 1-1/4" | PE32 | A0079385 |
| 1-1/2" | PE40 | A0079386 |
| 2" | PE50 | A0079387 |
| 2-1/2" | PE65 | A0079388 |
| 3/8" | PE10 | A0079381 |
| 3/4" | PE20 | A0079383 |
| 3" | PE80 | A0079389 |
| 4" | PE94 | A0079390 |
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
AAP 3000lb 90 Degree Threaded Elbow, NPT, Black: 1/8"
SKU: A0079379 | Model: PE06
AAP PE06: AAP 3000lb 90 Degree Threaded Elbow, 1/8". Pipe Size (inch): 1/8. Pipe Size (mm): 6. Center To End (A): 21.
