AAP 3000lb Threaded Coupling, 1/8"
Available

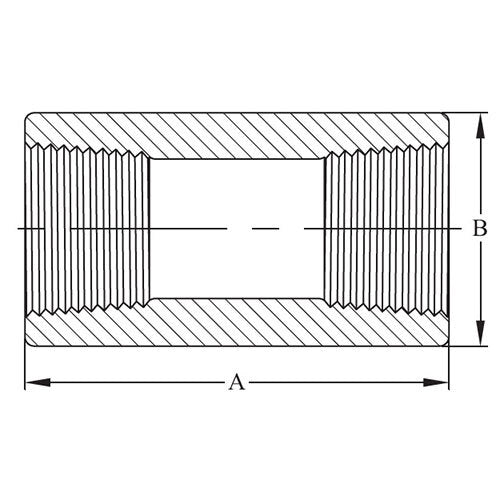

This AAP threaded coupling is a forged carbon steel fitting with NPT thread and a black finish. It is supplied in 12 sizes, 1/8" (6mm) to 4" (100mm). A coupling joins two male threaded pipes or fittings of the same size. It is threaded inside at both ends. A is its length and B is its outside diameter.
The threaded high pressure fittings are rated at 3000 lb. Standards for the range include ASTM A105 carbon steel forgings.
Where this product is used
- High pressure threaded pipework in carbon steel
- Joining two male threaded pipes of the same size
- Extending a threaded pipe run
Features
- 12 sizes, 1/8" (6mm) to 4" (100mm)
- 3000 lb forged carbon steel, ASME B16.11-2009
- NPT, black
- Thread: NPT taper threads to ANSI B1.20.1
Key specifications
| Specification | Detail |
|---|---|
| Brand | AAP |
| Product | Threaded coupling, forged carbon steel |
| Thread | NPT taper threads to ANSI B1.20.1 |
| Finish | Black |
| Rating | 3000 lb, threaded end |
| Applicable standard | ASME B16.11-2009 |
| Material | Carbon steel forging (ASTM A105) |
| Marking | Sizes 3/8" and under: brand only. 1/2" to 4": brand, material, heat number, B16, pressure and size |
| Sizes | 1/8" (6mm) to 4" (100mm) (12 sizes) |
Choosing the right option
Choose the size and thread to match your pipework (NPT or BSPT cannot be mixed), and check the thread gender at each end against the fitting it joins.
Related AAP products: AAP 3000lb Threaded Half Coupling, NPT, Black, AAP 3000lb Threaded Reducing Coupling, NPT, Black, AAP 3000lb Threaded Union, NPT, Black, AAP 3000lb Threaded Cap, NPT, Black.
| Option | Part number | SKU |
|---|---|---|
| 1/8" | PCP06 | A0079280 |
| 1/4" | PCP08 | A0079281 |
| 1/2" | PCP15 | A0079283 |
| 1" | PCP25 | A0079285 |
| 1-1/4" | PCP32 | A0079286 |
| 1-1/2" | PCP40 | A0079287 |
| 2" | PCP50 | A0079288 |
| 2-1/2" | PCP65 | A0079289 |
| 3/8" | PCP10 | A0079282 |
| 3/4" | PCP20 | A0079284 |
| 3" | PCP80 | A0079290 |
| 4" | PCP94 | A0079291 |
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
AAP 3000lb Threaded Coupling, NPT, Black: 1/8"
SKU: A0079280 | Model: PCP06
AAP PCP06: AAP 3000lb Threaded Coupling, 1/8". Pipe Size (inch): 1/8. Pipe Size (mm): 6. Length (A): 32.
