2 in (50 mm) Anticlockwise Gate Valve Handle | VRSH50ACC

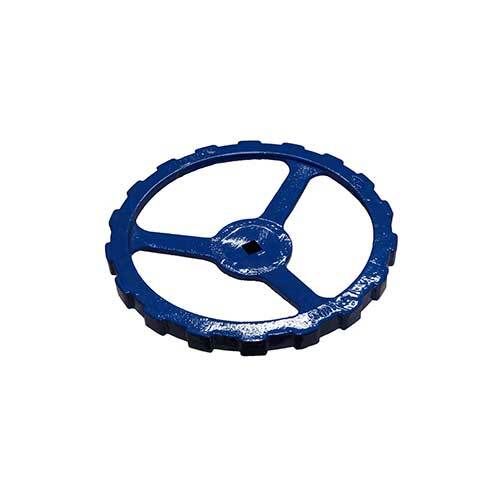

This AAP anticlockwise handle fits AAP resilient seat gate valves. It is supplied in 6 sizes, from the 2 in (50 mm) valve to the 12 in (300 mm) valve.

Each handle covers one valve size, and AAP lists the larger part numbers across two valve sizes: the 3 in handle (VRSH80ACC) also suits 2-1/2 in (65 mm) valves, and the 12 in handle (VRSH300ACC) also suits 10 in (250 mm) valves. The matching clockwise handles have part numbers without the ACC ending.

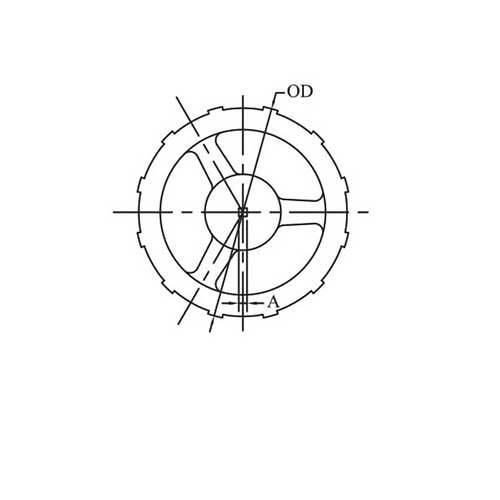

AAP gives the handle dimensions as A, the outside diameter OD and the approximate weight, shown below. Dimension A follows the AAP drawing, which does not define it in text. AAP does not state the handle material.

Where this product is used

• Operating AAP resilient seat gate valves by hand
• Replacing a lost or damaged handle
• Fitting out valves on water mains and pump stations

Features

• 6 sizes, for 2 in (50 mm) to 12 in (300 mm) resilient seat gate valves
• Anticlockwise handle
• Outside diameter from 200 mm to 500 mm
• Matches the AAP resilient seat gate valve range

Key specifications

Options and part numbers

Selecting the right option

Choose the handle by the valve size it needs to fit, and make sure the valve is anticlockwise, with a white cap. AAP lists a matching clockwise handle, and also lists stem extensions and an operating key.

Related products

See also AAP Resilient Seat Gate Valve, Anticlockwise, Spindle Cap, Table C, AAP Resilient Seat Gate Valve, Anticlockwise, Gear Operated, Table C, AAP Stem Extension for Resilient Seat Gate Valves and AAP Operating Key for Resilient Seat Gate Valves.
