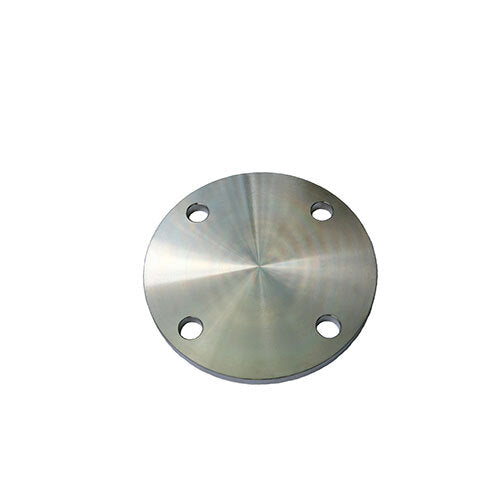

AAP blind flange, 4"

This AAP blind flange is made from 316/316L stainless steel to BS10 Table D. It is supplied in 4 sizes from 4" (100mm) to 10" (250mm). A blind flange has no centre bore. It closes off the end of a pipe run, a valve port or a vessel nozzle, and can be unbolted when you need access for inspection, cleaning or pressure testing.

Where this product is used

• Closing off spare pipe ends, valve ports and vessel nozzles
• Isolating a line so it can be pressure tested
• Chemical, food, beverage and other duties where stainless steel is specified

Features

• 4 sizes from 4" (100mm) to 10" (250mm)
• Made to BS10 Table D
• Material: 316/316L stainless steel
• No centre bore, so it closes off the pipe end
• Marked where possible with heat number, size, table, grade and dimensional standard

Key specifications

Choosing the right option

Choose the blind flange that matches the standard, table or class and size of the flange it closes. Match the standard and table or class to the mating flange and compare the drilling dimensions, because flanges made to different standards are not interchangeable. Gaskets and bolting are not included.
