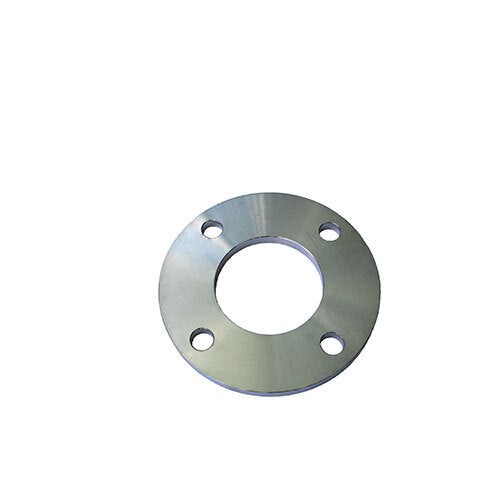

AAP slip-on flange, 4"
Available
This AAP slip-on flange is made from 316/316L stainless steel to BS10 Table D. It is supplied in 7 sizes from 4" (100mm) to 16" (400mm). A slip-on flange slides over the end of the pipe and is fillet welded to it. It is easier to align than a weld neck flange and suits general pipework.
Where this product is used
- General pipework joints where the flange is welded on to the pipe
- Connecting pipe to flanged valves, pumps and fittings
- Chemical, food, beverage and other duties where stainless steel is specified
Features
- 7 sizes from 4" (100mm) to 16" (400mm)
- Made to BS10 Table D
- Material: 316/316L stainless steel
- Slip-on design, welded to the pipe
- Marked where possible with heat number, size, table, grade and dimensional standard
Key specifications
| Specification | Detail |
|---|---|
| Brand | AAP |
| Product type | Slip-On Flange |
| Flange type | Slip-on flange |
| Standard | BS10 Table D |
| Material | 316/316L stainless steel |
| Connection | Slip-on, welded to the pipe |
| Sizes | 4" (100mm) to 16" (400mm) (7 sizes) |
| Marking | Where possible: heat number, size, table, grade and dimensional standard |
Choosing the right option
Check the pipe outside diameter against the flange bore before ordering. Match the standard and table or class to the mating flange and compare the drilling dimensions, because flanges made to different standards are not interchangeable. Gaskets and bolting are not included.
Related AAP products: AAP Blind Flange, 316/316L Stainless Steel, Table D, AAP Slip-On Flange, 316/316L Stainless Steel, Table E, AAP Blind Flange, 316/316L Stainless Steel, Table E, AAP BSP Flange, 316/316L Stainless Steel, Table E.
| Option | Part number | SKU |
|---|---|---|
| 4" | SSFSD31694 | A0080918 |
| 6" | SSFSD31696 | A0080919 |
| 8" | SSFSD31698 | A0080920 |
| 10" | SSFSD316X25 | A0080921 |
| 12" | SSFSD316X30 | A0080922 |
| 14" | SSFSD316X35 | A0080923 |
| 16" | SSFSD316X40 | A0080924 |
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
AAP Slip-On Flange, 316/316L Stainless Steel, Table D: 4"
SKU: A0080918 | Model: SSFSD31694
AAP SSFSD31694: AAP slip-on flange, 4". Pipe Size (inch): 4. Pipe Size (mm): 100. Bolt Size: M16.
