1/2 in (15 mm) BSP Flange, 316/316L Stainless Steel, Table E | SSFEBSP31615
Available

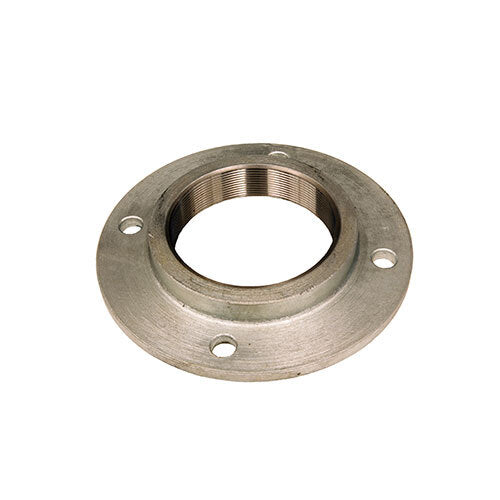

This AAP BSP flange is made from 316/316L stainless steel to BS10 Table E (manufacturer-stated). It is supplied in 9 sizes from 1/2 in (15 mm) to 4 in (100 mm).
A BSP flange is threaded to suit BSP threaded pipe and fittings, so it can be fitted without welding.
AAP's catalogue gives the dimensions for this stainless range but does not publish a pressure rating, so confirm the allowable pressure for 316/316L at your operating temperature with AIMS before ordering.
Where this product is used
- Threaded pipework where welding is not practical
- Connecting threaded pipe to flanged valves, pumps and fittings
- Chemical, food, beverage and other duties where stainless steel is specified
Features
- 9 sizes from 1/2 in (15 mm) to 4 in (100 mm)
- Made to BS10 Table E (manufacturer-stated)
- Material: 316/316L stainless steel (AAP specifies its stainless range to ASTM A182 F316L and F316)
- BSP threaded bore, no welding needed
- Marked where possible with heat number, size, table, grade and dimensional standard
Key specifications
| Specification | Detail |
|---|---|
| Brand | AAP |
| Flange type | BSP flange |
| Standard (manufacturer-stated) | BS10 Table E |
| Material | 316/316L stainless steel |
| Connection | Screwed, BSP thread |
| Sizes | 1/2 in (15 mm) to 4 in (100 mm) (9 sizes) |
| Marking | Where possible: heat number, size, table, grade and dimensional standard |
Options and part numbers

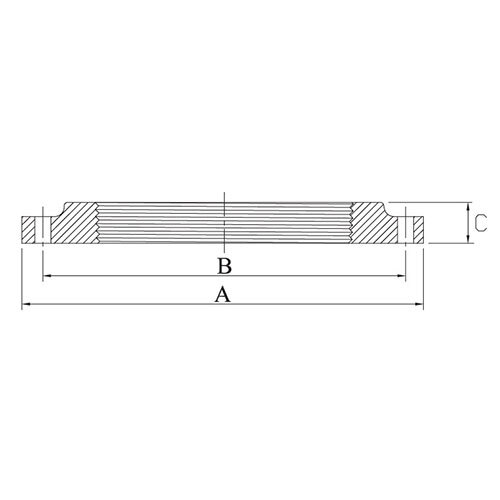

| Size | Part number | OD (mm) | PCD (mm) | Holes | Bolt size | Thickness (mm) | Weight (kg) |
|---|---|---|---|---|---|---|---|
| 1/2 in (15 mm) | SSFEBSP31615 | 95.3 | 66.7 | 4 x 14 mm | M12 | 15.8 | 0.34 |
| 3/4 in (20 mm) | SSFEBSP31620 | 101.6 | 73 | 4 x 14 mm | M12 | 17.4 | 0.45 |
| 1 in (25 mm) | SSFEBSP31625 | 114.3 | 82.6 | 4 x 14 mm | M12 | 18.2 | 0.57 |
| 1-1/4 in (32 mm) | SSFEBSP31632 | 120.7 | 87.3 | 4 x 14 mm | M12 | 19 | 0.79 |
| 1-1/2 in (40 mm) | SSFEBSP31640 | 133.3 | 98.4 | 4 x 14 mm | M12 | 21.4 | 1.02 |
| 2 in (50 mm) | SSFEBSP31650 | 152.4 | 114.3 | 4 x 18 mm | M16 | 22.2 | 1.36 |
| 2-1/2 in (65 mm) | SSFEBSP31665 | 165.1 | 127 | 4 x 18 mm | M16 | 26.2 | 1.7 |
| 3 in (80 mm) | SSFEBSP31680 | 184.1 | 146 | 4 x 18 mm | M16 | 27 | 2.27 |
| 4 in (100 mm) | SSFEBSP31694 | 215.9 | 177.8 | 8 x 18 mm | M16 | 32.7 | 3.18 |
Selecting the right option
Check the thread on your pipe or fitting before ordering: this flange is BSP. Match the standard and table or class to the mating flange and compare the drilling dimensions listed on this page, because flanges made to different standards are not interchangeable. Gaskets and bolting are not part of this listing. If you are not sure what suits, contact AIMS with the standard and size of the mating flange.
Related products
See also AAP Blind Flange, 316/316L Stainless Steel, Table E, AAP Slip-On Flange, 316/316L Stainless Steel, Table E, AAP Blind Flange, 316/316L Stainless Steel, Table D and AAP Slip-On Flange, 316/316L Stainless Steel, Table D.
