2 in (50 mm) Blind Plate Flange, BS4504 PN16 | SFPPN1650B
Available

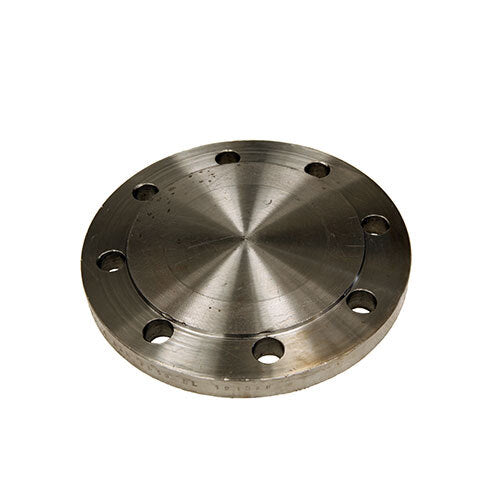

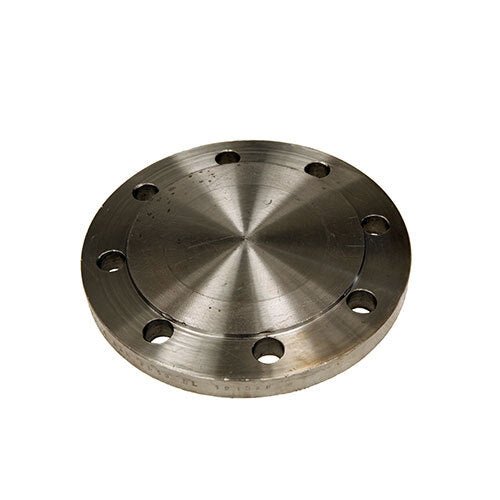

This AAP blind plate flange is made from carbon steel plate to BS4504 PN16 (now BS EN1092) (manufacturer-stated). It is supplied in 7 sizes from 2 in (50 mm) to 8 in (200 mm).
A blind flange has no centre bore. It closes off the end of a pipe run, a valve port or a vessel nozzle, and can be unbolted when you need access for inspection, cleaning or pressure testing. AAP describes plate flanges as mainly used for light duty, lower pressure or non-critical applications. They are cut and machined from plate steel.
PN16 is the pressure designation. AAP's catalogue gives the dimensions for this range but not a working pressure, so confirm the allowable pressure for your duty with AIMS before ordering.
Where this product is used
- Closing off spare pipe ends, valve ports and vessel nozzles
- Isolating a line so it can be pressure tested
- Pipework that has to be opened for inspection or cleaning
- Water supply, irrigation, fire services and general industry pipework
Features
- 7 sizes from 2 in (50 mm) to 8 in (200 mm)
- Made to BS4504 PN16 (now BS EN1092) (manufacturer-stated)
- Material: carbon steel plate
- Raised face, 3 mm raised face height
- No centre bore, so it closes off the pipe end
- Marked where possible with heat number, size, table, grade and dimensional standard
Key specifications
| Specification | Detail |
|---|---|
| Brand | AAP |
| Flange type | Blind plate flange |
| Standard (manufacturer-stated) | BS4504 PN16 (now BS EN1092) |
| Material | Carbon steel plate |
| Face | Raised face, 3 mm raised face height |
| Connection | Blind, no centre bore |
| Sizes | 2 in (50 mm) to 8 in (200 mm) (7 sizes) |
| Marking | Where possible: heat number, size, table, grade and dimensional standard |
Options and part numbers

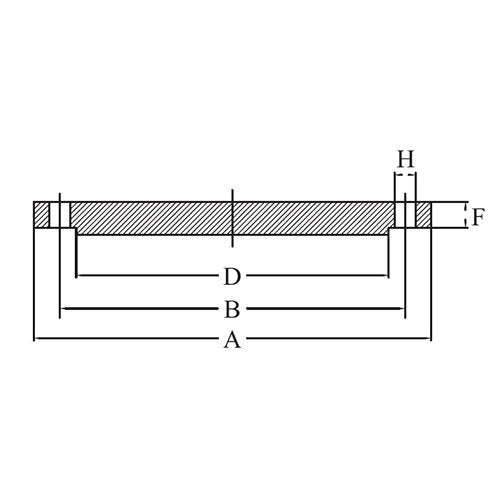

| Size | Part number | OD (mm) | PCD (mm) | Holes | Bolt size | Thickness (mm) | Weight (kg) |
|---|---|---|---|---|---|---|---|
| 2 in (50 mm) | SFPPN1650B | 165 | 125 | 4 x 18 mm | M16 | 20 | 2.6 |
| 2-1/2 in (65 mm) | SFPPN1665B | 185 | 145 | 4 x 18 mm | M16 | 20 | 3.3 |
| 3 in (80 mm) | SFPPN1680B | 200 | 160 | 8 x 18 mm | M16 | 20 | 4.3 |
| 4 in (100 mm) | SFPPN1694B | 220 | 180 | 8 x 18 mm | M16 | 22 | 5.3 |
| 5 in (125 mm) | SFPPN1695B | 250 | 210 | 8 x 18 mm | M16 | 22 | 7.7 |
| 6-1/2 in | SFPPN1696B | 285 | 240 | 8 x 22 mm | M20 | 24 | 9.8 |
| 8 in (200 mm) | SFPPN1698B | 340 | 295 | 12 x 22 mm | M20 | 26 | 15.5 |
Selecting the right option
Choose the blind flange that matches the standard, table or class and size of the flange it closes. The 6-1/2 in and 6-5/8 in options are the two bore choices for 6 in pipe (167 mm and 170 mm bore), so measure your pipe outside diameter to pick the right one. Match the standard and table or class to the mating flange and compare the drilling dimensions listed on this page, because flanges made to different standards are not interchangeable. Gaskets and bolting are not part of this listing. If you are not sure what suits, contact AIMS with the standard and size of the mating flange.
Related products
See also AAP Slip-On Plate Flange, BS4504 PN16 and AAP Screwed Flange BSP, BS4504 PN16.
