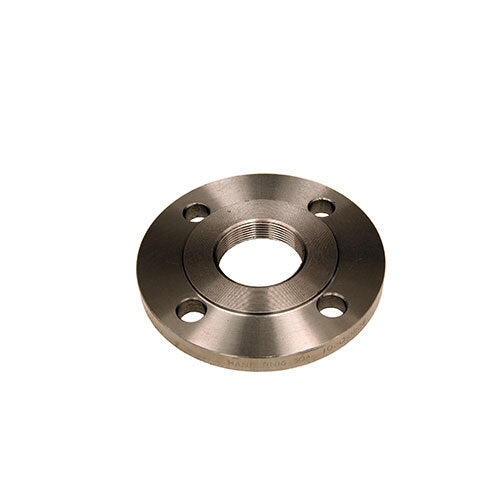

AAP BSP screwed flange, 1"

This AAP BSP screwed flange is made from carbon steel to BS4504 PN16 (now BS EN1092). It is supplied in 4 sizes from 1" (25mm) to 3" (80mm). A screwed flange is threaded to suit BSP threaded pipe, so it can be fitted without welding.

PN16 is the pressure designation.

Where this product is used

• Threaded pipework where welding is not practical
• Connecting threaded pipe to flanged valves, pumps and fittings
• Maintenance and repair work on threaded lines
• Water supply, irrigation, fire services and general industry pipework

Features

• 4 sizes from 1" (25mm) to 3" (80mm)
• Made to BS4504 PN16 (now BS EN1092)
• Material: carbon steel
• Raised face, 3mm raised face height
• BSP threaded bore, no welding needed
• Marked where possible with heat number, size, table, grade and dimensional standard

Key specifications

Choosing the right option

Check the thread on your pipe or fitting before ordering: this flange is BSP. Match the standard and table or class to the mating flange and compare the drilling dimensions, because flanges made to different standards are not interchangeable. Gaskets and bolting are not included.

Related AAP products: AAP Slip-On Plate Flange, BS4504 PN16, AAP Blind Plate Flange, BS4504 PN16.
