4 in (100 mm) Blind Plate Flange, AS2129 Table D | SFBD94
Available

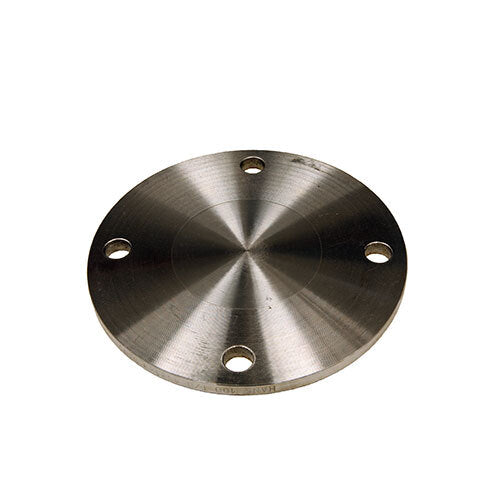

This AAP blind plate flange is made from carbon steel plate to AS2129 Table D (manufacturer-stated). It is supplied in 11 sizes from 4 in (100 mm) to 24 in (600 mm).
A blind flange has no centre bore. It closes off the end of a pipe run, a valve port or a vessel nozzle, and can be unbolted when you need access for inspection, cleaning or pressure testing. AAP describes plate flanges as mainly used for light duty, lower pressure or non-critical applications. They are cut and machined from plate steel.
AAP's temperature-pressure table for carbon steel flanges rates Table D at 700 kPa (7 bar) from -50 to 232 °C, stepping down as temperature rises above 232 °C, with a maximum hydrostatic test pressure of 1,050 kPa.
Where this product is used
- Closing off spare pipe ends, valve ports and vessel nozzles
- Isolating a line so it can be pressure tested
- Pipework that has to be opened for inspection or cleaning
- Water supply, irrigation, fire services and general industry pipework
Features
- 11 sizes from 4 in (100 mm) to 24 in (600 mm)
- Made to AS2129 Table D (manufacturer-stated)
- Material: carbon steel plate
- Table D rating 700 kPa (7 bar) from -50 to 232 °C, per the manufacturer
- No centre bore, so it closes off the pipe end
- Marked where possible with heat number, size, table, grade and dimensional standard
Key specifications
| Specification | Detail |
|---|---|
| Brand | AAP |
| Flange type | Blind plate flange |
| Standard (manufacturer-stated) | AS2129 Table D |
| Material | Carbon steel plate |
| Connection | Blind, no centre bore |
| Sizes | 4 in (100 mm) to 24 in (600 mm) (11 sizes) |
| Rating (AAP carbon steel flange table) | 700 kPa (7 bar) from -50 to 232 °C |
| Maximum hydrostatic test pressure | 1,050 kPa (10.5 bar) |
| Marking | Where possible: heat number, size, table, grade and dimensional standard |
Options and part numbers

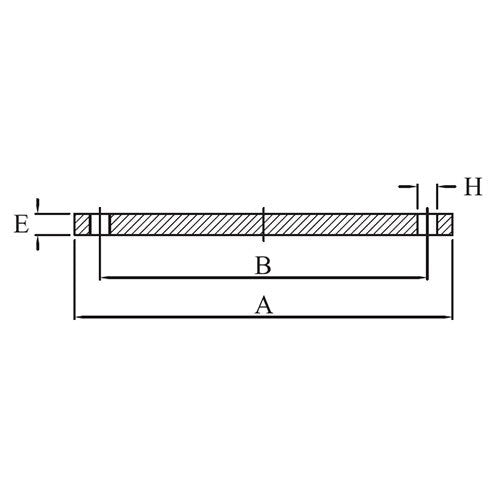

| Size | Part number | OD (mm) | PCD (mm) | Holes | Bolt size | Thickness (mm) | Weight (kg) |
|---|---|---|---|---|---|---|---|
| 4 in (100 mm) | SFBD94 | 216 | 178 | 4 x 18 mm | M16 | 12 | 3.43 |
| 5 in (125 mm) | SFBD95 | 254 | 210 | 8 x 18 mm | M16 | 13 | 5.31 |
| 6 in (150 mm) | SFBD96 | 279 | 235 | 8 x 18 mm | M16 | 13 | 6.49 |
| 8 in (200 mm) | SFBD98 | 337 | 292 | 8 x 18 mm | M16 | 13 | 9.28 |
| 10 in (250 mm) | SFBDX25 | 406 | 356 | 8 x 22 mm | M20 | 16 | 16.14 |
| 12 in (300 mm) | SFBDX30 | 457 | 406 | 12 x 22 mm | M20 | 19 | 24.4 |
| 14 in (350 mm) | SFBDX35 | 525 | 470 | 12 x 26 mm | M24 | 22 | - |
| 16 in (400 mm) | SFBDX40 | 580 | 521 | 12 x 26 mm | M24 | 22 | 43.5 |
| 18 in (450 mm) | SFBDX45 | 640 | 584 | 12 x 26 mm | M24 | 25 | - |
| 20 in (500 mm) | SFBDX50 | 705 | 641 | 16 x 26 mm | M24 | 29 | - |
| 24 in (600 mm) | SFBDX60 | 825 | 756 | 16 x 30 mm | M27 | 32 | - |
Selecting the right option
Choose the blind flange that matches the standard, table or class and size of the flange it closes. Match the standard and table or class to the mating flange and compare the drilling dimensions listed on this page, because flanges made to different standards are not interchangeable. Gaskets and bolting are not part of this listing. If you are not sure what suits, contact AIMS with the standard and size of the mating flange.
