2 in (50 mm) Blind Plate Flange, AS2129 Table H | SFBH50
Available

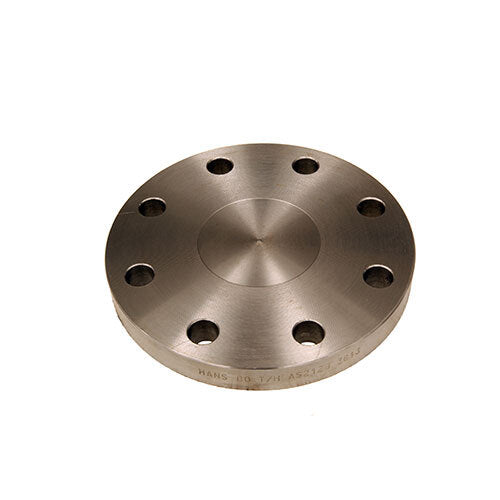

This AAP blind plate flange is made from carbon steel plate to AS2129 Table H (manufacturer-stated). It is supplied in 5 sizes from 2 in (50 mm) to 6 in (150 mm).
A blind flange has no centre bore. It closes off the end of a pipe run, a valve port or a vessel nozzle, and can be unbolted when you need access for inspection, cleaning or pressure testing. AAP describes plate flanges as mainly used for light duty, lower pressure or non-critical applications. They are cut and machined from plate steel.
AAP's temperature-pressure table for carbon steel flanges rates Table H at 3,500 kPa (35 bar) from -50 to 232 °C, stepping down as temperature rises above 232 °C, with a maximum hydrostatic test pressure of 5,250 kPa.
Where this product is used
- Closing off spare pipe ends, valve ports and vessel nozzles
- Isolating a line so it can be pressure tested
- Pipework that has to be opened for inspection or cleaning
- Water supply, irrigation, fire services and general industry pipework
Features
- 5 sizes from 2 in (50 mm) to 6 in (150 mm)
- Made to AS2129 Table H (manufacturer-stated)
- Material: carbon steel plate
- Table H rating 3,500 kPa (35 bar) from -50 to 232 °C, per the manufacturer
- No centre bore, so it closes off the pipe end
- Marked where possible with heat number, size, table, grade and dimensional standard
Key specifications
| Specification | Detail |
|---|---|
| Brand | AAP |
| Flange type | Blind plate flange |
| Standard (manufacturer-stated) | AS2129 Table H |
| Material | Carbon steel plate |
| Connection | Blind, no centre bore |
| Sizes | 2 in (50 mm) to 6 in (150 mm) (5 sizes) |
| Rating (AAP carbon steel flange table) | 3,500 kPa (35 bar) from -50 to 232 °C |
| Maximum hydrostatic test pressure | 5,250 kPa (52.5 bar) |
| Marking | Where possible: heat number, size, table, grade and dimensional standard |
Options and part numbers

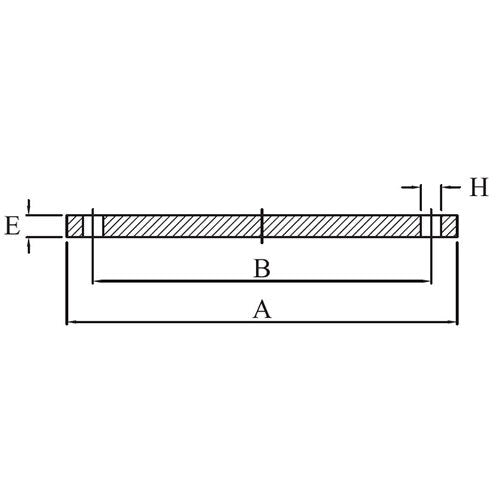

| Size | Part number | OD (mm) | PCD (mm) | Holes | Bolt size | Thickness (mm) | Weight (kg) |
|---|---|---|---|---|---|---|---|
| 2 in (50 mm) | SFBH50 | 165 | 127 | 4 x 18 mm | M16 | 19 | 3.07 |
| 2-1/2 in (65 mm) | SFBH65 | 184 | 146 | 8 x 18 mm | M16 | 19 | 3.87 |
| 3 in (80 mm) | SFBH80 | 205 | 165 | 8 x 18 mm | M16 | 22 | 5.41 |
| 4 in (100 mm) | SFBH94 | 229 | 191 | 8 x 18 mm | M16 | 25 | 8.07 |
| 6 in (150 mm) | SFBH96 | 305 | 260 | 12 x 22 mm | M20 | 29 | -- |
Selecting the right option
Choose the blind flange that matches the standard, table or class and size of the flange it closes. Match the standard and table or class to the mating flange and compare the drilling dimensions listed on this page, because flanges made to different standards are not interchangeable. Gaskets and bolting are not part of this listing. If you are not sure what suits, contact AIMS with the standard and size of the mating flange.
Related products
See also AAP Slip-On Plate Flange, AS2129 Table H, AAP Blind Plate Flange, AS2129 Table D, AAP Blind Plate Flange, AS2129 Table E and AAP Slip-On Plate Flange, AS2129 Table D.
