AAP Branch Outlet, 1" x 3"

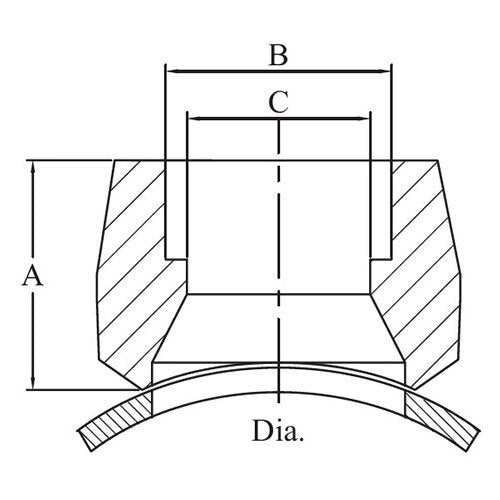

This AAP branch outlet with socket weld end is a forged carbon steel fitting. It is supplied in 5 sizes, 1/2 x 1" (15 x 25mm) to 1 x 3" (25 x 80mm). A branch outlet is an integrally reinforced forged fitting that is welded onto a header pipe to make a branch connection. It is made to MSS SP-97-2012. The size is shown as two sizes, smaller first. The outlet end is a socket weld. A, B and C are the dimensions lettered on the AAP drawing; AAP's table does not name them.

Where this product is used

• High pressure carbon steel branch connections
• Making a socket weld branch off a header pipe
• Branches where a full tee would be too large

Features

• 5 sizes, 1/2 x 1" (15 x 25mm) to 1 x 3" (25 x 80mm)
• Forged carbon steel, MSS SP-97-2012
• Outlet end: Socket weld
• Material: Carbon steel forging (ASTM A105)

Key specifications

Choosing the right option

Choose the size to match your pipe, and weld the pipe into the socket in line with your site welding procedure.
