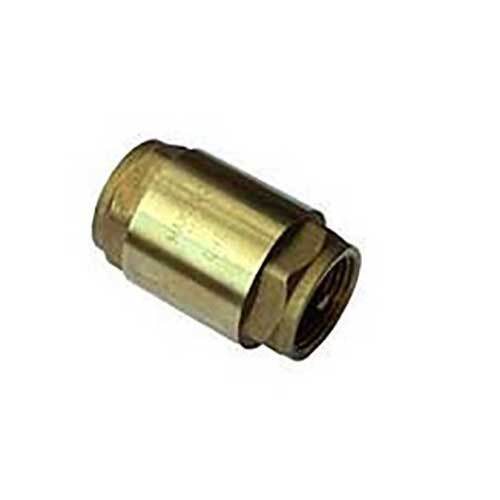

AAP Brass E-Type Check Valve, 1/2"

This AAP brass E-type spring check valve has a brass CW617N body, a stainless steel spring and an NBR seat. It is supplied in 10 sizes from 3/8" (10mm) to 4" (100mm).

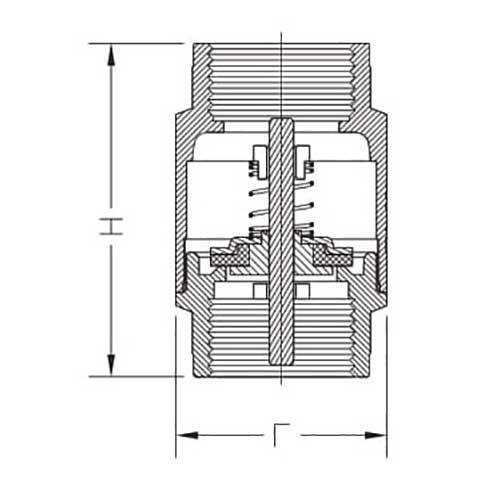

A spring check valve closes with a spring rather than relying on gravity, so it does not need to be mounted upright. This valve can be fitted in a horizontal, vertical or oblique position. Flow opens the disc against the spring, and the spring closes it as flow stops or reverses. Like any check valve it stops reverse flow but it is not a tight shut-off valve, so fit a separate isolating valve where you need to isolate the line. The pressure is 2,482 kPa (24.82 bar) up to 1" and for the 3/8" size, 1,793 kPa (17.93 bar) from 1-1/4" to 2" and 1,172 kPa (11.72 bar) from 2-1/2" to 4". That is higher than the same size of AAP Y-type valve.

Where this product is used

• Hot and cold water lines
• Compressed air lines
• Oil lines
• Non-return on small bore plant and workshop services

Features

• 10 sizes from 3/8" (10mm) to 4" (100mm)
• Brass CW617N body with a stainless steel spring
• NBR 60 SH/A seat
• Fits in a horizontal, vertical or oblique position
• Pressure by size, up to 2,482 kPa (24.82 bar)
• Working temperatures: air -20 to 110°C, water 0 to 90°C, gas -20 to 60°C

Key specifications

Choosing the right option

Choose the size.
