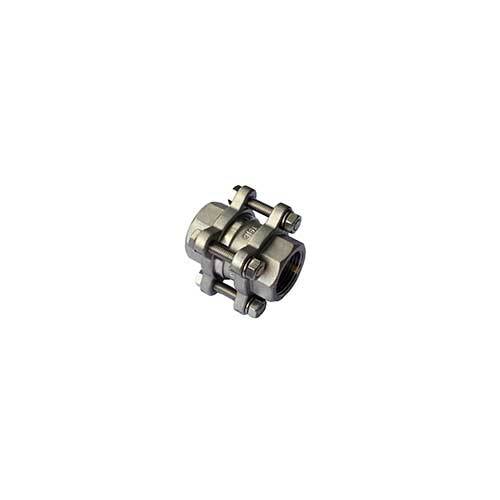

AAP SS 3 Piece Spring Check Valve, 1/2"

This AAP stainless steel 3 piece spring check valve has a CF8M stainless steel body, disc and caps, a 316 stainless steel spring, a PTFE joint gasket and female threaded ends. It is supplied in 6 sizes from 1/2" (15mm) to 2" (50mm).

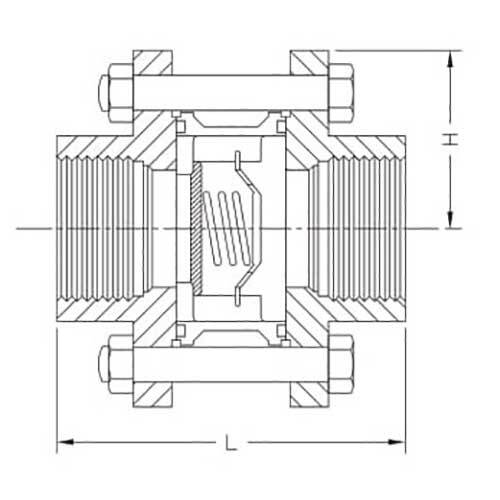

A spring check valve closes with a spring rather than relying on gravity, so it does not need to be mounted upright. This valve can be fitted in a horizontal, vertical or oblique position. Flow opens the disc against the spring, and the spring closes it as flow stops or reverses. Like any check valve it stops reverse flow but it is not a tight shut-off valve, so fit a separate isolating valve where you need to isolate the line. The maximum working temperature is 200°C and the cold working pressure is 6,895 kPa (68.95 bar), with a thread to AS 1722.1. It is a 3 piece design, with a body, a cap and a spring cap.

Where this product is used

• Corrosive liquids and environments
• Chemical and process lines, once material compatibility is checked
• Higher pressure water, oil and gas non-return
• Compact non-return where space is tight

Features

• 6 sizes from 1/2" (15mm) to 2" (50mm)
• CF8M stainless steel body, disc and caps
• 316 stainless steel spring, PTFE joint gasket
• Thread to AS 1722.1
• Cold working pressure 6,895 kPa (68.95 bar), maximum 200°C
• Suits water, oil, gas, chemicals and corrosive liquids

Key specifications

Choosing the right option

Choose the size to match your pipe thread, and check that CF8M and PTFE suit your fluid and temperature.

Related AAP products: AAP Stainless Steel Swing Check Valve, Screwed, AAP Brass Check Valve, Y-Type, Spring Loaded, AAP Brass Check Valve, E-Type, Spring Loaded, AAP Brass Swing Check Valve, Screwed.
