1 in (25 mm) Nyglass Camlock Coupler Type D | CNG25D
Available

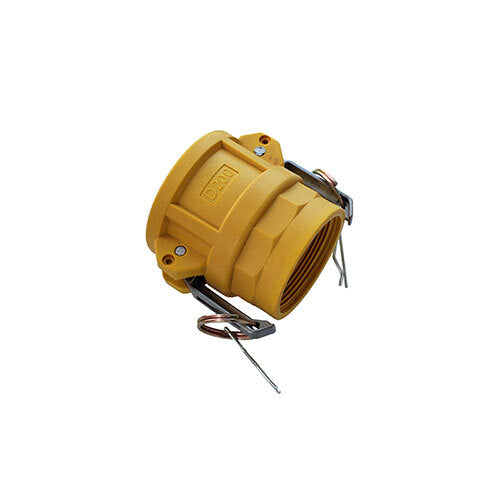

This AAP nyglass camlock coupler is a Type D: a female camlock end and a female BSP thread. It is supplied in 6 sizes from 3/4 in (20 mm) to 3 in (80 mm).
Camlocks, also known as cam and groove fittings, give a quick connection and disconnection of hose and piping. The female camlock end locks onto a male camlock end of the same size, and the female BSP thread screws onto a male threaded pipe, nipple or outlet.
It is nyglass (yellow), a 30% glass-filled nylon that AAP offers as an alternative to polypropylene for agricultural spraying equipment and the chemical industry (manufacturer-stated).

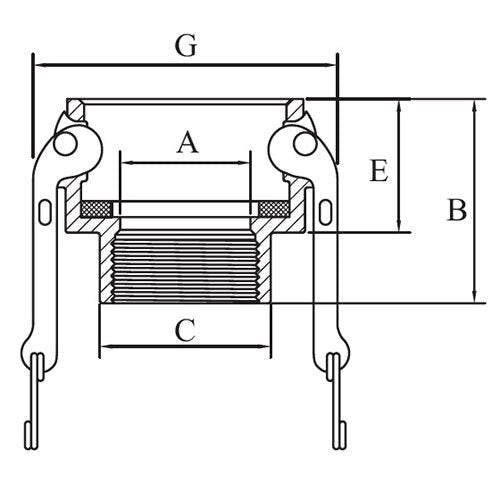

AAP makes its camlocks to interchange with products made to Mil Spec A-A 59326 (manufacturer-stated). AAP states that the threads are cut to ISO 228. Dimension letters in the table follow the AAP catalogue drawings.
Where this product is used
- Agricultural spraying equipment
- Chemical transfer hose connections
- Irrigation and farm water hose lines
- Hose distributor and general industry connections
Features
- 6 sizes from 3/4 in (20 mm) to 3 in (80 mm)
- Type D: Female Camlock x Female BSP
- Nyglass, 30% glass-filled nylon
- Working pressure 517 kPa (5.17 bar) to 862 kPa (8.62 bar) by size (manufacturer-stated)
- Interchanges with Mil Spec A-A 59326 products (manufacturer-stated)
- Maximum temperature 100 degrees C with an NBR (Buna) gasket (manufacturer-stated)
Working pressure by size
| Nominal size | Working pressure (kPa) | Working pressure (bar) |
|---|---|---|
| 3/4 in (20 mm) | 862 | 8.62 |
| 1 in (25 mm) | 862 | 8.62 |
| 1-1/4 in (32 mm) | 862 | 8.62 |
| 1-1/2 in (40 mm) | 862 | 8.62 |
| 2 in (50 mm) | 862 | 8.62 |
| 3 in (80 mm) | 517 | 5.17 |
Key specifications
| Specification | Detail |
|---|---|
| Brand | AAP |
| Product | Camlock coupler, Type D |
| Material | Nyglass (30% glass-filled nylon), yellow |
| Connection | Female Camlock x Female BSP |
| Thread (manufacturer-stated) | BSP, cut to ISO 228 |
| Working pressure (manufacturer-stated) | 517 kPa (5.17 bar) to 862 kPa (8.62 bar) |
| Maximum temperature (manufacturer-stated) | 100 degrees C with NBR (Buna) gasket |
| Interchange (manufacturer-stated) | Mil Spec A-A 59326 |
| Sizes | 3/4 in (20 mm) to 3 in (80 mm) (6 sizes) |
Options and part numbers
| Size | Part number | A (mm) | B (mm) | C (mm) | E (mm) | G (mm) | Weight (kg) |
|---|---|---|---|---|---|---|---|
| 3/4 in (20 mm) | CNG20D | 19 | 53 | 32 | 32 | 53 | 0.08 |
| 1 in (25 mm) | CNG25D | 26 | 60 | 40 | 40 | 60 | 0.12 |
| 1-1/4 in (32 mm) | CNG32D | 30 | 71 | 48 | 48 | 78 | 0.17 |
| 1-1/2 in (40 mm) | CNG40D | 39 | 73 | 56 | 49 | 85 | 0.22 |
| 2 in (50 mm) | CNG50D | 50 | 76 | 67 | 54 | 96 | 0.24 |
| 3 in (80 mm) | CNG80D | 72 | 89 | 96 | 60 | 127 | 0.4 |
Selecting the right option
Choose the size to match the hose or pipe thread you are connecting, and pair it with a male camlock of the same size (Types A, E or F). Check the mating thread is BSP, because AAP cuts these threads to ISO 228. AAP gives the media as water, oil, powders and some hydrocarbons and chemicals, so check chemical compatibility before use. AAP also lists spare parts for its camlocks: brass handles (code CBH), handle pins (code CP) and NBR gaskets (code CGN), so contact AIMS if you need them.
Related products
See also AAP Nyglass Camlock Adaptor, Type A, Male Camlock x Female BSP, AAP Nyglass Camlock Adaptor, Type F, Male Camlock x Male BSP, AAP Nyglass Camlock Adaptor, Type E, Male Camlock x Male Hosebarb, AAP Nyglass Camlock Dust Plug, Type DP and AAP Polypropylene Camlock Coupler, Type D, Female Camlock x Female BSP.
