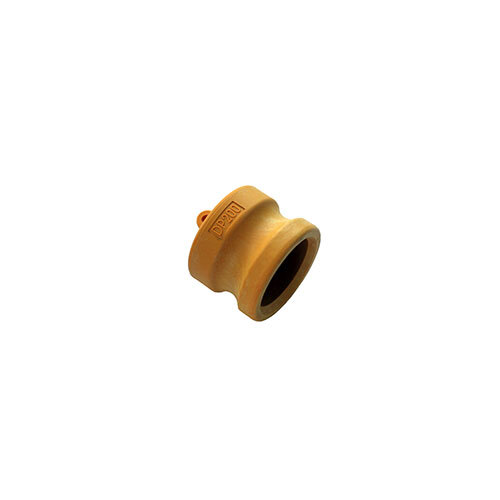

1 in (25 mm) Nyglass Camlock Dust Plug | CNG25DP

This AAP nyglass camlock dust plug is a Type DP: a dust plug that plugs a female camlock end. It is supplied in 6 sizes from 3/4 in (20 mm) to 3 in (80 mm).

This is the dust plug: it is a male end that plugs into a female camlock coupler (Types B, C and D) to close it off when the line is not in use.

It is nyglass (yellow), a 30% glass-filled nylon that AAP offers as an alternative to polypropylene for agricultural spraying equipment and the chemical industry (manufacturer-stated).

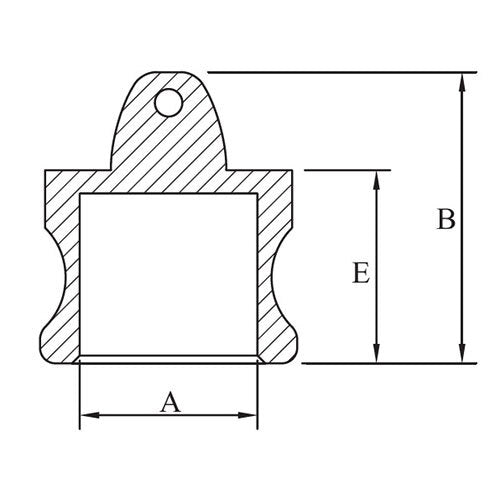

AAP makes its camlocks to interchange with products made to Mil Spec A-A 59326 (manufacturer-stated). Dimension letters in the table follow the AAP catalogue drawings.

Where this product is used

• Plugging the female camlock end of a coupler when it is not connected
• Closing off unused tanker, pump and hose outlets
• Agricultural spraying equipment
• Chemical transfer hose connections

Features

• 6 sizes from 3/4 in (20 mm) to 3 in (80 mm)
• Type DP: plugs a female camlock end
• Nyglass, 30% glass-filled nylon
• Male end locks into the cam arms of the coupler
• Interchanges with Mil Spec A-A 59326 products (manufacturer-stated)
• Spare handles, handle pins and NBR gaskets available for AAP camlocks

Key specifications

Options and part numbers

Selecting the right option

Choose the size to match the hose or pipe thread you are connecting, and pair it with a female camlock coupler of the same size (Types B, C or D). AAP gives the media as water, oil, powders and some hydrocarbons and chemicals, so check chemical compatibility before use. AAP also lists spare parts for its camlocks: brass handles (code CBH), handle pins (code CP) and NBR gaskets (code CGN), so contact AIMS if you need them.
