2 in (50 mm) Buttweld Cap, X-Stg | WC50X
Available

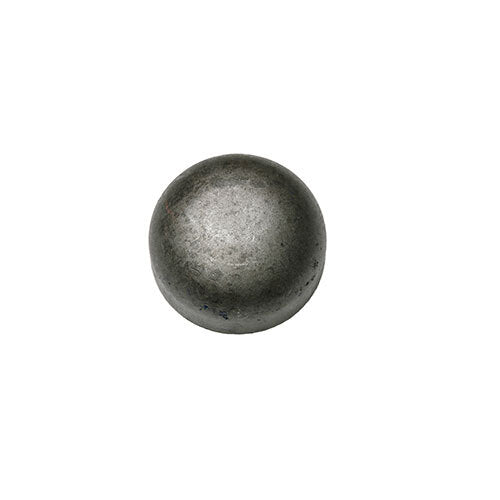

This AAP buttweld cap is made from carbon steel to ASTM A234 WPB, ANSI B16.9 (manufacturer-stated). It is supplied in 6 sizes, 2 in (50 mm) to 10 in (250 mm).
A cap closes the end of a welded pipe run. It is welded to the pipe end. This is the X-Stg (extra strong) weight, with a thicker wall than the Std weight of the same size. C is its overall length.
AAP describes its buttweld range as carbon alloy steel to ASTM A234 for use in various piping systems. AAP lists these advantages of buttweld (manufacturer-stated): a welded fitting is permanently leak proof, the continuous metal between pipe and fitting adds strength, the smoother inner surface and gradual direction changes reduce pressure loss, turbulence, corrosion and abrasion, and a welded system uses a minimum of space.
Where this product is used
- Pipework where a welded, permanently leak proof joint is wanted, as AAP describes for buttweld
- Closing the end of a welded pipe run
- Heavier wall pipework that needs X-Stg fittings
Features
- 6 sizes, 2 in (50 mm) to 10 in (250 mm)
- Butt weld ends, ASTM A234 WPB, ANSI B16.9 (manufacturer-stated)
- Wall thickness listed for every size
Key specifications
| Specification | Detail |
|---|---|
| Brand | AAP |
| Product | Buttweld cap |
| Weight class (manufacturer-stated) | Extra strong (X-Stg) |
| Standards (manufacturer-stated) | ASTM A234 WPB, ANSI B16.9 |
| Material | Carbon steel (AAP: carbon alloy steel to ASTM A234) |
| Ends | Butt weld ends |
| Sizes | 2 in (50 mm) to 10 in (250 mm) (6 sizes) |
Options and part numbers
| Size | Part number | Outside dia. (mm) | Inside dia. (mm) | Length C (mm) | Wall (mm) | Weight (kg) |
|---|---|---|---|---|---|---|
| 2 in (50 mm) | WC50X | 60.3 | 49.2 | 38.1 | 5.5 | 0.3 |
| 2-1/2 in (65 mm) | WC65X | 73 | 59 | 38.1 | 7 | 0.5 |
| 3 in (80 mm) | WC80X | 88.9 | 73.7 | 50.8 | 7.6 | 0.9 |
| 4 in (100 mm) | WC94X | 114.3 | 97.2 | 63.5 | 8.6 | 1.5 |
| 6 in (150 mm) | WC96X | 168.3 | 146.4 | 88.9 | 11 | 4.5 |
| 10 in (250 mm) | WCX25X | 273.1 | - | 127 | 12.7 | - |

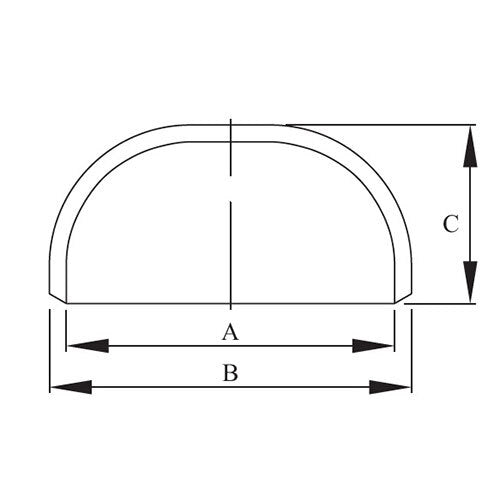

Diameters and length (C) are in millimetres, from the AAP drawing. Figures AAP lists that conflict with its own neighbouring sizes are left blank (-) until AAP confirms them.
Selecting the right option
Match the wall thickness to the pipe you are welding to. AAP does not publish a pressure rating for the fittings themselves.
Related products
See also AAP Buttweld Equal Tee, X-Stg, AAP Buttweld Concentric Reducer, X-Stg, AAP Buttweld 90 Degree Long Radius Elbow, X-Stg and AAP Buttweld Cap, Std.
