AAP Galvanised Malleable Iron Reducing Tee, 1" x 3/4" x 3/4"
Available

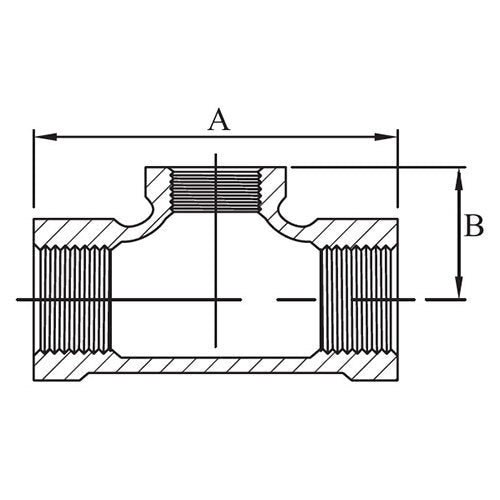

This AAP galvanised malleable iron reducing tee is a hot dip galvanised fitting with BSP threads. It is supplied in 28 sizes, 3/4 x 1/2" (20 x 15mm) to 3 x 2" (80 x 50mm). A reducing tee has a run of one size and a branch of a smaller size. This one is threaded inside (female) at all three ports. Sizes are given as the run first, then the branch, for example 1 x 1/2. A is the overall length of the run and B the height.
These fittings are made to EN 10242:1994, in blackheart malleable cast iron and delivered hot dip galvanised. Each fitting is pressure tested to EN 10242 at a minimum hydrostatic pressure of 2068 kPa (equivalent to a minimum pneumatic pressure of 500 kPa) without leakage. Recommended maximum working pressure is 1379 kPa for water and 1034 kPa for gas, steam and compressed air. Working pressures may also be limited by pressure piping codes or industry regulations.
Where this product is used
- Taking a smaller branch off a galvanised threaded pipe run
- Reducing the size of a branch without a separate bush
- Water, gas, steam and compressed air lines within the rated pressure and temperature
Features
- 28 sizes, 3/4 x 1/2" (20 x 15mm) to 3 x 2" (80 x 50mm)
- Malleable iron, hot dip galvanised, EN 10242:1994
- BSP threads
- Test pressure 2068 kPa
Key specifications
| Specification | Detail |
|---|---|
| Brand | AAP |
| Product | Galvanised malleable iron reducing tee |
| Finish | Hot dip galvanised, as prescribed by EN 10242 |
| Material | Blackheart malleable cast iron to ASTM A197 and ASTM A47, hot dip galvanised |
| Thread | BSP (British Standard Pipe) thread: parallel internal (Rp) and taper external (R), cut to AS 1722.1 and ISO 7-1 |
| Ends | Female (internal) thread at all three ports |
| Applicable standard | EN 10242:1994, threaded pipe fittings in malleable cast iron |
| Recommended working pressure | 1379 kPa water, 1034 kPa gas, steam and compressed air |
| Test pressure | 2068 kPa hydrostatic (equivalent to 500 kPa pneumatic minimum) |
| Sizes | 3/4 x 1/2" (20 x 15mm) to 3 x 2" (80 x 50mm) (28 sizes) |
Choosing the right option
Choose the size to match your pipework. These fittings are BSP threaded, so check that your pipe or fitting is BSP and not NPT before you order. Sizes are given as the run first, then the branch.
Related AAP products: AAP Galvanised Malleable Iron Equal Tee, AAP Galvanised Malleable Iron 90 Degree Reducing Elbow, Female-Female, AAP Galvanised Malleable Iron Hexagon Bush, AAP Galvanised Malleable Iron Reducing Socket.
| Option | Part number | SKU |
|---|---|---|
| 1" x 3/8" | LT2510 | A0077087 |
| 1" x 1/2" | LT2515 | A0077088 |
| 1" x 3/4" | LT2520 | A0077089 |
| 1" x 3/4" x 3/4" | LT252020 | A0077090 |
| 1" x 1-1/4" | LT2532 | A0077092 |
| 1" x 1-1/2" | LT2540 | A0077093 |
| 1-1/4" x 1/2" | LT3215 | A0077094 |
| 1-1/4" x 3/4" | LT3220 | A0077095 |
| 1-1/4" x 1" | LT3225 | A0077096 |
| 1-1/4" x 1" x 1/2" | LT322515 | A0077097 |
| 1-1/4" x 1" x 1" | LT322525 | A0077098 |
| 1-1/4" x 1" x 1-1/4" | LT322532 | A0077099 |
| 1-1/4" x 1-1/2" | LT3240 | A0077102 |
| 1-1/4" x 2" | LT3250 | A0077103 |
| 1-1/2" x 1/2" | LT4015 | A0077104 |
| 1-1/2" x 3/4" | LT4020 | A0077105 |
| 1-1/2" x 1" | LT4025 | A0077106 |
| 1-1/2" x 1-1/4" | LT4032 | A0077108 |
| 1-1/2" x 1-1/4" x 1" | LT403225 | A0077110 |
| 1-1/2" x 2" | LT4050 | A0077113 |
| 2" x 1/2" | LT5015 | A0077114 |
| 2" x 3/4" | LT5020 | A0077115 |
| 2" x 1" | LT5025 | A0077116 |
| 2" x 1-1/4" | LT5032 | A0077118 |
| 2" x 1-1/2" | LT5040 | A0077120 |
| 2" x 2-1/2" | LT5065 | A0077125 |
| 3/4" x 1/2" | LT2015 | A0077084 |
| 3" x 2" | LT8050 | A0077132 |
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
AAP Galvanised Malleable Iron Reducing Tee: 1" x 3/4" x 3/4"
SKU: A0077090 | Model: LT252020
AAP LT252020: AAP Galvanised Malleable Iron Reducing Tee, 1" x 3/4" x 3/4". Pipe Size (inch): 1 x 3/4 x 3/4. Pipe Size (mm): 25 x 20 x 20. Overall Length (A): 68.
