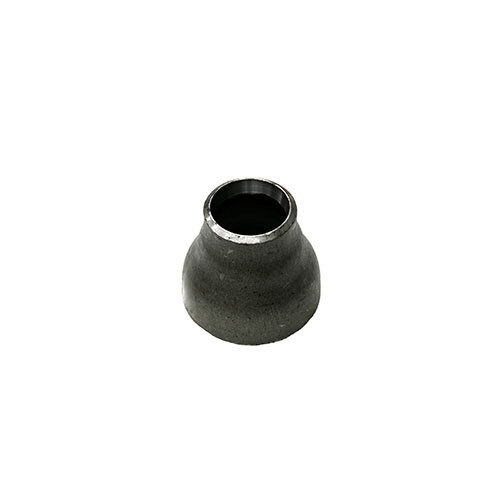

1 x 1/2 in (25 x 15 mm) Buttweld Concentric Reducer, Std | WCR2515

$3.77
$3.77
Inc. GST

Available

This AAP buttweld concentric reducer is made from carbon steel to ASTM A234 WPB, ANSI B16.9 (manufacturer-stated). It is supplied in 51 sizes, 3/4 x 1/2 in (20 x 15 mm) to 24 x 20 in (600 x 500 mm).

A concentric reducer steps a pipe run from one size down to a smaller size, with both ends on the same centreline. Sizes are listed as the larger size first, then the smaller.

AAP describes its buttweld range as carbon alloy steel to ASTM A234 for use in various piping systems. AAP lists these advantages of buttweld (manufacturer-stated): a welded fitting is permanently leak proof, the continuous metal between pipe and fitting adds strength, the smoother inner surface and gradual direction changes reduce pressure loss, turbulence, corrosion and abrasion, and a welded system uses a minimum of space.

Where this product is used

  • Pipework where a welded, permanently leak proof joint is wanted, as AAP describes for buttweld
  • Reducing a welded pipe run from a larger size to a smaller one
  • Changing size where the pipe centreline stays the same

Features

  • 51 sizes, 3/4 x 1/2 in (20 x 15 mm) to 24 x 20 in (600 x 500 mm)
  • Butt weld ends, ASTM A234 WPB, ANSI B16.9 (manufacturer-stated)
  • Wall thickness listed for every size

Key specifications

Specification Detail
Brand AAP
Product Buttweld concentric reducer
Weight class (manufacturer-stated) Standard weight (Std)
Standards (manufacturer-stated) ASTM A234 WPB, ANSI B16.9
Material Carbon steel (AAP: carbon alloy steel to ASTM A234)
Ends Butt weld ends
Weld end preparation (manufacturer-stated) To ANSI B16.25: wall under 5 mm cut square or slightly chamfered; 5 mm to 22 mm plain bevel at 37.5 degrees plus or minus 2.5 degrees; over 22 mm compound bevel
Sizes 3/4 x 1/2 in (20 x 15 mm) to 24 x 20 in (600 x 500 mm) (51 sizes)

Options and part numbers

Size Part number Larger OD A1 (mm) Larger ID A2 (mm) Smaller OD B1 (mm) Smaller ID B2 (mm) Length C (mm) Wall (mm) Weight (kg)
3/4 x 1/2 in (20 x 15 mm) WCR2015 26.7 20.9 21.3 15.7 38.1 2.9 0.06
1 x 1/2 in (25 x 15 mm) WCR2515 33.4 26.6 21.3 15.7 50.8 3.4 0.1
1 x 3/4 in (25 x 20 mm) WCR2520 33.4 26.6 26.7 20.9 50.8 3.4 0.1
1-1/4 x 3/4 in (32 x 20 mm) WCR3220 42.2 35 26.7 20.9 50.8 3.6 0.2
1-1/4 x 1 in (32 x 25 mm) WCR3225 42.2 35 33.4 26.6 50.8 3.6 0.2
1-1/2 x 1/2 in (40 x 15 mm) WCR4015 48.3 40.9 21.3 15.7 63.5 3.7 0.2
1-1/2 x 3/4 in (40 x 20 mm) WCR4020 48.3 40.9 26.7 20.9 63.5 3.7 0.2
1-1/2 x 1 in (40 x 25 mm) WCR4025 48.3 40.9 33.4 26.6 63.5 3.7 0.3
1-1/2 x 1-1/4 in (40 x 32 mm) WCR4032 48.3 40.9 42.2 35 63.5 3.7 0.3
2 x 3/4 in (50 x 20 mm) WCR5020 60.3 52.5 26.7 20.9 76.2 3.9 0.4
2 x 1 in (50 x 25 mm) WCR5025 60.3 52.5 33.4 26.6 76.2 3.9 0.4
2 x 1-1/4 in (50 x 32 mm) WCR5032 60.3 52.5 42.2 35 76.2 3.9 0.4
2 x 1-1/2 in (50 x 40 mm) WCR5040 60.3 52.5 48.3 40.9 76.2 3.9 0.4
2-1/2 x 1 in (65 x 25 mm) WCR6525 73 62.6 33.4 26.6 88.9 5.2 0.6
2-1/2 x 1-1/4 in (65 x 32 mm) WCR6532 73 62.6 42.2 35 88.9 5.2 0.6
2-1/2 x 1-1/2 in (65 x 40 mm) WCR6540 73 62.6 48.3 40.9 88.9 5.2 0.6
2-1/2 x 2 in (65 x 50 mm) WCR6550 73 62.6 60.3 52.5 88.9 5.2 0.6
3 x 1 in (80 x 25 mm) WCR8025 88.9 77.9 33.4 26.6 88.9 5.5 0.8
3 x 1-1/2 in (80 x 40 mm) WCR8040 88.9 77.9 48.3 40.9 88.9 5.5 0.9
3 x 2 in (80 x 50 mm) WCR8050 88.9 77.9 60.3 52.5 88.9 5.5 0.9
3 x 2-1/2 in (80 x 65 mm) WCR8065 88.9 77.9 73 62.6 88.9 5.5 1
4 x 2 in (100 x 50 mm) WCR9450 114.3 102.3 60.3 52.5 101.6 6.1 1.5
4 x 2-1/2 in (100 x 65 mm) WCR9465 114.3 102.3 73 62.6 101.6 6.1 1.6
4 x 3 in (100 x 80 mm) WCR9480 114.3 102.3 88.9 77.9 101.6 6.1 1.6
5 x 3 in (125 x 80 mm) WCR9580 141.3 128.1 88.9 77.9 127 6.6 2.5
5 x 4 in (125 x 100 mm) WCR9594 141.3 128.1 114.3 102.3 127 6.6 2.6
6 x 2-1/2 in (150 x 65 mm) WCR9665 168.3 154.1 73 62.6 139.7 7.1 3.7
6 x 3 in (150 x 80 mm) WCR9680 168.3 154.1 88.9 77.9 139.7 7.1 3.6
6 x 4 in (150 x 100 mm) WCR9694 168.3 154.1 114.3 102.3 139.7 7.1 3.5
6 x 5 in (150 x 125 mm) WCR9695 168.3 154.1 141.3 128.1 139.7 7.1 3.7
8 x 4 in (200 x 100 mm) WCR9894 219.1 202.7 114.3 102.3 152.4 8.2 6.3
8 x 5 in (200 x 125 mm) WCR9895 219.1 202.7 141.3 128.1 152.4 8.2 5.9
8 x 6 in (200 x 150 mm) WCR9896 219.1 202.7 168.3 154.1 152.4 8.2 5.9
10 x 6 in (250 x 150 mm) WCRX2596 273.1 254.5 168.3 154.1 177.8 9.3 10
10 x 8 in (250 x 200 mm) WCRX2598 273.1 254.5 219.1 202.7 177.8 9.3 10.3
12 x 6 in (300 x 150 mm) WCRX3096 323.9 304.9 168.3 154.1 203.2 9.5 15.2
12 x 8 in (300 x 200 mm) WCRX3098 323.9 304.9 219.1 202.7 203.2 9.5 15.3
12 x 10 in (300 x 250 mm) WCRX30X25 323.9 304.9 273.1 254.5 203.2 9.5 15.4
14 x 10 in (350 x 250 mm) WCRX35X25 355.6 336.5 273.1 254.5 330 9.5 28
14 x 12 in (350 x 300 mm) WCRX35X30 355.6 336.5 323.9 304.9 330 9.5 28
16 x 10 in (400 x 250 mm) WCRX40X25 406.4 387.3 273.1 254.5 356 9.5 35
16 x 12 in (400 x 300 mm) WCRX40X30 406.4 387.3 323.9 304.9 356 9.5 35
16 x 14 in (400 x 350 mm) WCRX40X35 406.4 387.3 355.6 336.5 356 9.5 35
18 x 12 in (450 x 300 mm) WCRX45X30 457 437.9 323.9 304.8 381 9.5 40
18 x 14 in (450 x 350 mm) WCRX45X35 457 437.9 355.6 336.5 381 9.5 40
18 x 16 in (450 x 400 mm) WCRX45X40 457 437.9 406.4 387.3 381 9.5 40
20 x 12 in (500 x 300 mm) WCRX50X30 508 488.9 323.9 304.8 508 9.5 61
20 x 14 in (500 x 350 mm) WCRX50X35 508 488.9 355.6 336.5 508 9.5 61
20 x 16 in (500 x 400 mm) WCRX50X40 508 488.9 406.4 387.3 508 9.5 61
24 x 18 in (600 x 450 mm) WCRX60X45 610 590.9 457 437.9 508 9.5 77
24 x 20 in (600 x 500 mm) WCRX60X50 610 590.9 508 488.9 508 9.5 77

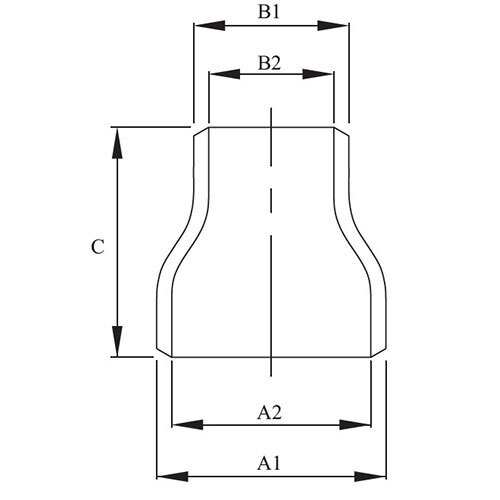

Dimensions are in millimetres, as lettered on the AAP drawing: A1 and A2 are the outside and inside diameters of the larger end, B1 and B2 of the smaller end, and C is the overall length.

Selecting the right option

Match the wall thickness to the pipe you are welding to. AAP does not publish a pressure rating for the fittings themselves.

Related products

See also AAP Buttweld Eccentric Reducer, Std, AAP Buttweld Reducing Tee, Std, AAP Buttweld Equal Tee, Std and AAP Buttweld Cap, Std.
