AAP Buttweld Eccentric Reducer, 1" x 1/2"
Available

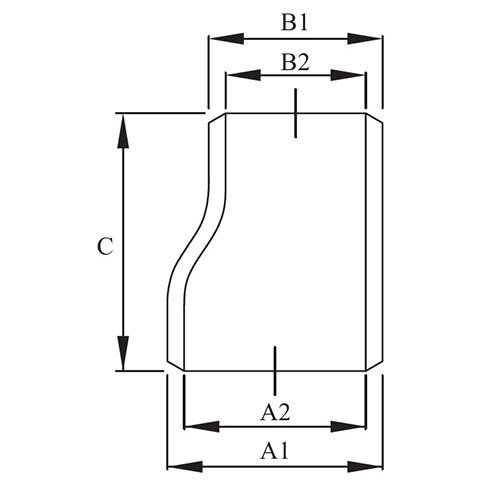

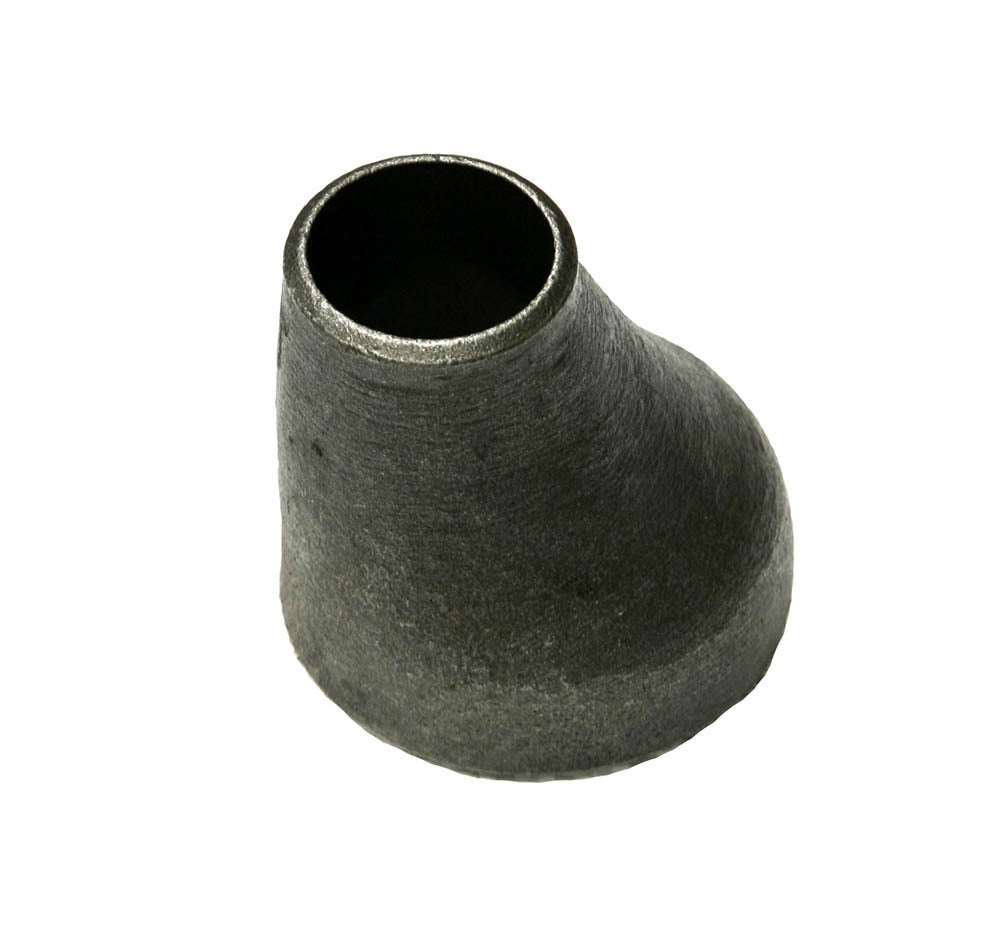

This AAP buttweld eccentric reducer is made from carbon steel to ASTM A234 WPB, ANSI B16.9. It is supplied in 25 sizes, 1 x 1/2" (25 x 15mm) to 12 x 10" (300 x 250mm). An eccentric reducer steps a pipe run from one size down to a smaller size, with the two ends offset so that one side of the pipe stays flat through the change. Sizes are given as the larger size first, then the smaller.
The buttweld range is carbon alloy steel to ASTM A234 for use in various piping systems. Advantages of buttweld: a welded fitting is permanently leak proof, the continuous metal between pipe and fitting adds strength, the smoother inner surface and gradual direction changes reduce pressure loss, turbulence, corrosion and abrasion, and a welded system uses a minimum of space.
Where this product is used
- Pipework where a welded, permanently leak proof joint is wanted
- Reducing a welded pipe run from a larger size to a smaller one
- Runs where one side of the pipe must stay level through the size change
Features
- 25 sizes, 1 x 1/2" (25 x 15mm) to 12 x 10" (300 x 250mm)
- Butt weld ends, ASTM A234 WPB, ANSI B16.9
- Wall thickness given for every size
- Weight class: Standard weight (Std)
Key specifications
| Specification | Detail |
|---|---|
| Brand | AAP |
| Product | Buttweld eccentric reducer |
| Weight class | Standard weight (Std) |
| Standards | ASTM A234 WPB, ANSI B16.9 |
| Material | Carbon steel (carbon alloy steel to ASTM A234) |
| Ends | Butt weld ends |
| Weld end preparation | To ANSI B16.25: wall under 5mm cut square or slightly chamfered, 5mm to 22mm plain bevel at 37.5° plus or minus 2.5°, over 22mm compound bevel |
| Sizes | 1 x 1/2" (25 x 15mm) to 12 x 10" (300 x 250mm) (25 sizes) |
Choosing the right option
Match the wall thickness to the pipe you are welding to.
Related AAP products: AAP Buttweld Concentric Reducer, Std, AAP Buttweld Reducing Tee, Std, AAP Buttweld Equal Tee, Std, AAP Buttweld Cap, Std.
| Option | Part number | SKU |
|---|---|---|
| 1" x 1/2" | WER2515 | A0078200 |
| 1" x 3/4" | WER2520 | A0078201 |
| 1-1/4" x 1" | WER3225 | A0078202 |
| 1-1/2" x 1/2" | WER4015 | A0078203 |
| 1-1/2" x 1-1/4" | WER4032 | A0078206 |
| 2" x 1" | WER5025 | A0078208 |
| 2" x 1-1/2" | WER5040 | A0078210 |
| 2-1/2" x 1-1/2" | WER6540 | A0078211 |
| 2-1/2" x 2" | WER6550 | A0078212 |
| 3" x 2" | WER8050 | A0078214 |
| 3" x 2-1/2" | WER8065 | A0078215 |
| 4" x 2" | WER9450 | A0078216 |

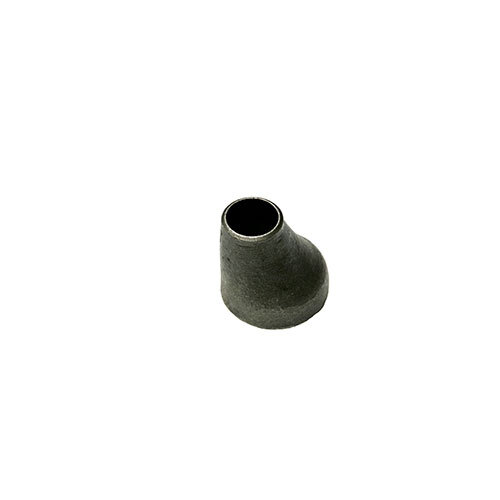

| 4" x 2-1/2" | WER9465 | A0078217 |
| 4" x 3" | WER9480 | A0078218 |
| 5" x 4" | WER9594 | A0078220 |
| 6" x 3" | WER9680 | A0078221 |
| 6" x 4" | WER9694 | A0078222 |
| 6" x 5" | WER9695 | A0078223 |
| 8" x 4" | WER9894 | A0078224 |
| 8" x 5" | WER9895 | A0078225 |
| 8" x 6" | WER9896 | A0078226 |
| 10" x 6" | WERX2596 | A0078228 |
| 10" x 8" | WERX2598 | A0078229 |
| 12" x 8" | WERX3098 | A0078231 |
| 12" x 10" | WERX30X25 | A0078232 |
