AAP 3000lb Threaded Coupling, 1/2"

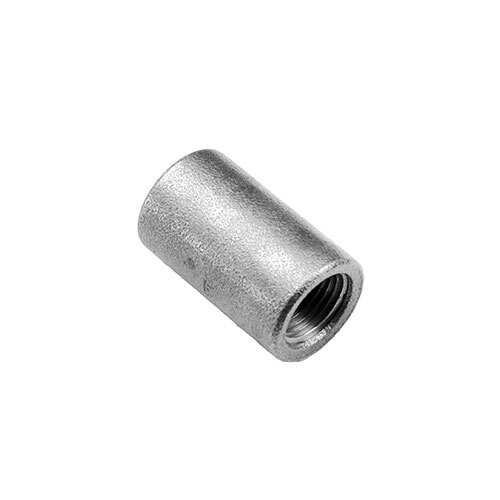

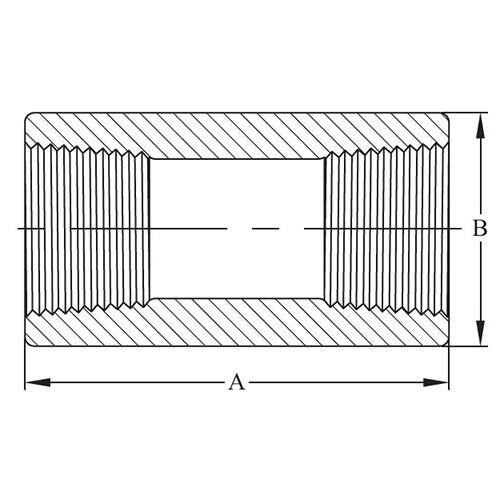

This AAP threaded coupling is a forged carbon steel fitting with NPT thread and a hot dip galvanised finish. It is supplied in 6 sizes, 1/2" (15mm) to 2" (50mm). A coupling joins two male threaded pipes or fittings of the same size. It is threaded inside at both ends. A is its length and B is its outside diameter.

The threaded high pressure fittings are rated at 3000 lb. Standards for the range include ASTM A105 carbon steel forgings.

Where this product is used

• High pressure threaded pipework in carbon steel
• Joining two male threaded pipes of the same size
• Extending a threaded pipe run

Features

• 6 sizes, 1/2" (15mm) to 2" (50mm)
• 3000 lb forged carbon steel, ASME B16.11-2009
• NPT, hot dip galvanised
• Thread: NPT taper threads to ANSI B1.20.1

Key specifications

Choosing the right option

Choose the size and thread to match your pipework (NPT or BSPT cannot be mixed), and check the thread gender at each end against the fitting it joins.
