AAP Black Steel Equal Tee, 46mm long, 1/8", 6mm
Available

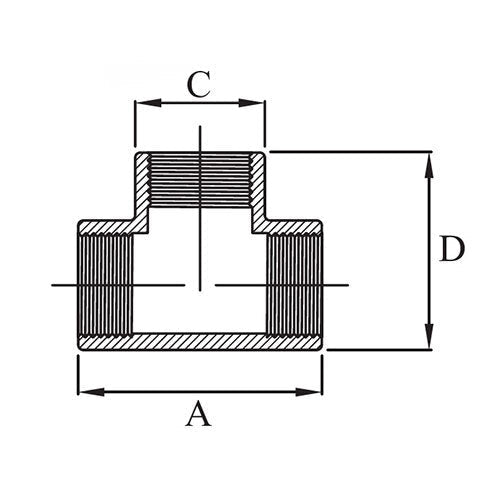

This AAP black equal tee is a mild steel fitting with BSP threads. It is supplied in 12 sizes, 1/8" (6mm) to 4" (100mm). An equal tee has three threaded ports of the same size, so a pipe run can branch in one direction. This one is threaded inside (female) at all three ports. A is the length of the run, C the outside diameter and D the height.
It is made to BS EN 10241:2000, as a steel threaded pipe fitting. It has a black finish. All sizes other than unions are sample tested to 5.2 MPa. These are test pressures, not working pressures.
Where this product is used
- Branching a threaded steel pipe run
- Taking an equal size branch off a main
- General threaded steel pipework
Features
- 12 sizes, 1/8" (6mm) to 4" (100mm)
- Mild steel, black, BS EN 10241:2000
- BSP threads
- Thread: BSP (British Standard Pipe) thread, ISO 7 and AS 1722 Part 1
Key specifications
| Specification | Detail |
|---|---|
| Brand | AAP |
| Product | Black equal tee, mild steel |
| Finish | Black |
| Thread | BSP (British Standard Pipe) thread, ISO 7 and AS 1722 Part 1 |
| Ends | Female (internal) thread at all three ports |
| Applicable standard | BS EN 10241:2000, steel threaded pipe fittings |
| Test pressure | Sample tested to 5.2 MPa |
| Sizes | 1/8" (6mm) to 4" (100mm) (12 sizes) |
Choosing the right option
Choose the size to match your pipework. These fittings are BSP threaded, so check that your pipe or fitting is BSP and not NPT before you order.
Related AAP products: AAP Black and Galvanised Steel Reducing Tee, AAP Black Steel 90 Degree Elbow, Female-Female, AAP Galvanised Steel Cross, AAP Black Steel Socket, Heavy Type.
| Option | Part number | SKU |
|---|---|---|
| 46 / 1/8" / 6 | ST06 | A0075882 |
| 46 / 1/4" / 8 | ST08 | A0075883 |
| 48 / 3/8" / 10 | ST10 | A0075884 |
| 63 / 1/2" / 15 | ST15 | A0075885 |
| 71 / 3/4" / 20 | ST20 | A0075886 |
| 88 / 1" / 25 | ST25 | A0075887 |
| 106 / 1-1/4" / 32 | ST32 | A0075888 |
| 108 / 1-1/2" / 40 | ST40 | A0075889 |
| 131 / 2" / 50 | ST50 | A0075890 |
| 151 / 2-1/2" / 65 | ST65 | A0075891 |
| 178 / 3" / 80 | ST80 | A0075892 |
| 233 / 4" / 100 | ST94 | A0075893 |
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
AAP Black Steel Equal Tee: 46 / 1/8" / 6
SKU: A0075882 | Model: ST06
AAP ST06: AAP Black Steel Equal Tee, 46mm long, 1/8", 6mm. Pipe Size (inch): 1/8. Pipe Size (mm): 6. Length (A): 46.
