1/8 in (6 mm) Black Socket, Heavy Type | SS06
Available

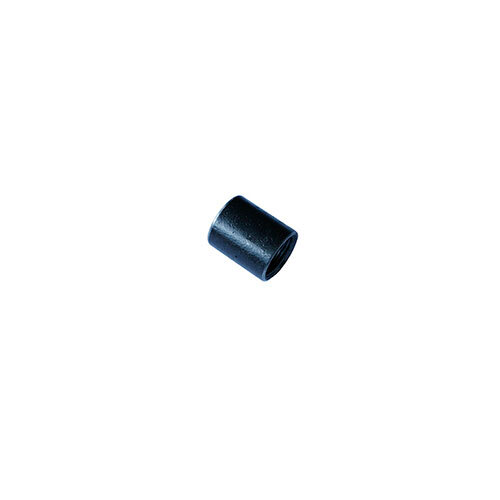

This AAP black heavy type socket is a mild steel fitting with BSP threads. It is supplied in 14 sizes, 1/8 in (6 mm) to 6 in (150 mm).
A socket (also called a coupling) joins two male threaded pipes or fittings of the same size. It is threaded inside at both ends. AAP lists this as its heavy type.
AAP states that its steel threaded pipe fittings are made to BS EN 10241:2000 (manufacturer-stated). It has a black finish. AAP states that all sizes of its fittings other than unions are sample tested to 5.2 MPa (manufacturer-stated). These are test pressures, not working pressures, so confirm the pressure and temperature for your application with AIMS before you order.
Where this product is used
- Joining two male threaded pipes of the same size
- Extending a threaded steel pipe run
- General threaded steel pipework
Features
- 14 sizes, 1/8 in (6 mm) to 6 in (150 mm)
- Mild steel, black, BS EN 10241:2000 (manufacturer-stated)
- BSP threads
Key specifications
| Specification | Detail |
|---|---|
| Brand | AAP |
| Product | Black heavy type socket, mild steel |
| Finish | Black |
| Material | Mild steel. AAP lists carbon 0.25 per cent maximum and tensile strength 320 N/mm2 minimum for its steel fittings (manufacturer-stated) |
| Thread | BSP (British Standard Pipe) thread; AAP lists ISO 7 and AS 1722 Part 1 for its threads (manufacturer-stated) |
| Ends | Female (internal) thread at both ends |
| Applicable standard (manufacturer-stated) | BS EN 10241:2000, steel threaded pipe fittings (manufacturer-stated) |
| Test pressure (manufacturer-stated) | Sample tested to 5.2 MPa |
| Sizes | 1/8 in (6 mm) to 6 in (150 mm) (14 sizes) |
Options and part numbers
| Size | Part number | Length A (mm) | Outside dia. C (mm) | Weight (kg) |
|---|---|---|---|---|
| 1/8 in (6 mm) | SS06 | 19.3 | 15.6 | 0.01 |
| 1/4 in (8 mm) | SS08 | 27 | 18.5 | 0.03 |
| 3/8 in (10 mm) | SS10 | 28 | 22 | 0.04 |
| 1/2 in (15 mm) | SS15 | 37 | 27 | 0.07 |
| 3/4 in (20 mm) | SS20 | 39 | 32.5 | 0.09 |
| 1 in (25 mm) | SS25 | 46 | 39.5 | 0.15 |
| 1-1/4 in (32 mm) | SS32 | 51 | 49 | 0.22 |
| 1-1/2 in (40 mm) | SS40 | 51 | 56 | 0.29 |
| 2 in (50 mm) | SS50 | 60 | 68 | 0.44 |
| 2-1/2 in (65 mm) | SS65 | 69 | 84 | 0.67 |
| 3 in (80 mm) | SS80 | 75 | 98 | 0.96 |
| 4 in (100 mm) | SS94 | 87 | 124 | 1.55 |
| 5 in (125 mm) | SS95 | 96 | 151 | 2.37 |
| 6 in (150 mm) | SS96 | 96 | 178 | 3.03 |
A is the length and C the outside diameter, as lettered on the AAP drawing, in millimetres. Weights are approximate, in kilograms per piece.
Selecting the right option
Choose the size to match your pipework. These fittings are BSP threaded, so check that your pipe or fitting is BSP and not NPT before you order.
