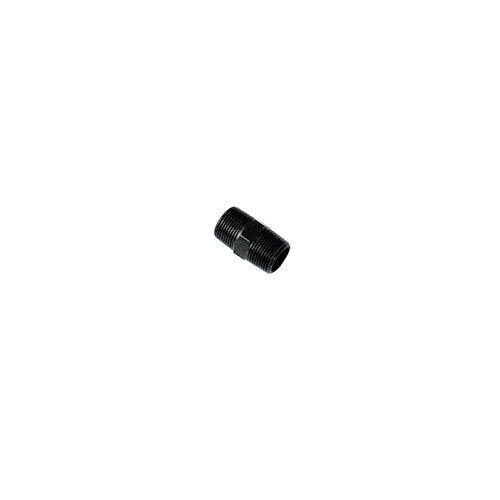

AAP Black Steel Hexagon Nipple, 1/8"
Available
This AAP black hexagon nipple is a mild steel fitting with BSP threads. It is supplied in 12 sizes, 1/8" (6mm) to 4" (100mm). A hexagon nipple has a male thread at each end and a hexagon in the middle for a spanner. It joins two female threaded fittings of the same size.
It is made to BS EN 10241:2000, as a steel threaded pipe fitting. It has a black finish. All sizes other than unions are sample tested to 5.2 MPa. These are test pressures, not working pressures.
Where this product is used
- Joining two female threaded fittings that need a spanner flat
- Close connections between valves and fittings
- General threaded steel pipework
Features
- 12 sizes, 1/8" (6mm) to 4" (100mm)
- Mild steel, black, BS EN 10241:2000
- BSP threads
- Thread: BSP (British Standard Pipe) thread, ISO 7 and AS 1722 Part 1
Key specifications
| Specification | Detail |
|---|---|
| Brand | AAP |
| Product | Black hexagon nipple, mild steel |
| Finish | Black |
| Thread | BSP (British Standard Pipe) thread, ISO 7 and AS 1722 Part 1 |
| Ends | Male (external) thread at both ends, with a hexagon between |
| Applicable standard | BS EN 10241:2000, steel threaded pipe fittings |
| Test pressure | Sample tested to 5.2 MPa |
| Sizes | 1/8" (6mm) to 4" (100mm) (12 sizes) |
Choosing the right option
Choose the size to match your pipework. These fittings are BSP threaded, so check that your pipe or fitting is BSP and not NPT before you order.
Related AAP products: AAP Black Steel Hexagon Reducing Nipple, AAP Black Steel Socket, Heavy Type, AAP Black Steel Hexagon Bush, AAP Black Steel Hexagon Plug.
| Option | Part number | SKU |
|---|---|---|
| 1/8" | SN06 | A0075770 |
| 1/4" | SN08 | A0075771 |
| 3/8" | SN10 | A0075772 |
| 1/2" | SN15 | A0075773 |
| 3/4" | SN20 | A0075774 |
| 1" | SN25 | A0075775 |
| 1-1/4" | SN32 | A0075776 |
| 1-1/2" | SN40 | A0075777 |
| 2" | SN50 | A0075778 |
| 2-1/2" | SN65 | A0075779 |
| 3" | SN80 | A0075780 |
| 4" | SN94 | A0075781 |
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
AAP Black Steel Hexagon Nipple: 1/8"
SKU: A0075770 | Model: SN06

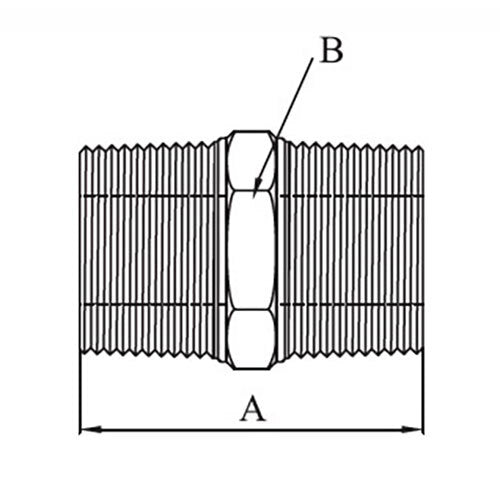

AAP SN06: AAP Black Steel Hexagon Nipple, 1/8". Pipe Size (inch): 1/8. Pipe Size (mm): 6. Length (A): 27.
