AAP Galvanised Malleable Iron Equal Tee, 1/4"
Available

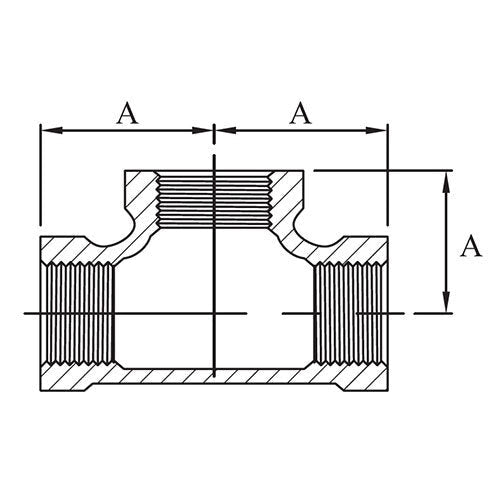

This AAP galvanised malleable iron equal tee is a hot dip galvanised fitting with BSP threads. It is supplied in 13 sizes, 1/8" (6mm) to 6" (150mm). An equal tee has three threaded ports of the same size, so a pipe run can branch in one direction. This one is threaded inside (female) at all three ports. A is the centre to end dimension.
These fittings are made to EN 10242:1994, in blackheart malleable cast iron and delivered hot dip galvanised. Each fitting is pressure tested to EN 10242 at a minimum hydrostatic pressure of 2068 kPa (equivalent to a minimum pneumatic pressure of 500 kPa) without leakage. Recommended maximum working pressure is 1379 kPa for water and 1034 kPa for gas, steam and compressed air. Working pressures may also be limited by pressure piping codes or industry regulations.
Where this product is used
- Branching a galvanised threaded pipe run
- Taking an equal size branch off a main
- Water, gas, steam and compressed air lines within the rated pressure and temperature
Features
- 13 sizes, 1/8" (6mm) to 6" (150mm)
- Malleable iron, hot dip galvanised, EN 10242:1994
- BSP threads
- Test pressure 2068 kPa
Key specifications
| Specification | Detail |
|---|---|
| Brand | AAP |
| Product | Galvanised malleable iron equal tee |
| Finish | Hot dip galvanised, as prescribed by EN 10242 |
| Material | Blackheart malleable cast iron to ASTM A197 and ASTM A47, hot dip galvanised |
| Thread | BSP (British Standard Pipe) thread: parallel internal (Rp) and taper external (R), cut to AS 1722.1 and ISO 7-1 |
| Ends | Female (internal) thread at all three ports |
| Applicable standard | EN 10242:1994, threaded pipe fittings in malleable cast iron |
| Recommended working pressure | 1379 kPa water, 1034 kPa gas, steam and compressed air |
| Test pressure | 2068 kPa hydrostatic (equivalent to 500 kPa pneumatic minimum) |
| Sizes | 1/8" (6mm) to 6" (150mm) (13 sizes) |
Choosing the right option
Choose the size to match your pipework. These fittings are BSP threaded, so check that your pipe or fitting is BSP and not NPT before you order.
Related AAP products: AAP Galvanised Malleable Iron Reducing Tee, AAP Galvanised Malleable Iron Cross, AAP Galvanised Malleable Iron 90 Degree Elbow, Female-Female, AAP Galvanised Malleable Iron Socket.
| Option | Part number | SKU |
|---|---|---|
| 1/8" | LT06 | A0077066 |
| 1/4" | LT08 | A0077067 |
| 1/2" | LT15 | A0077069 |
| 1" | LT25 | A0077071 |
| 1-1/4" | LT32 | A0077072 |
| 1-1/2" | LT40 | A0077073 |
| 2" | LT50 | A0077074 |
| 2-1/2" | LT65 | A0077075 |
| 3/8" | LT10 | A0077068 |
| 3/4" | LT20 | A0077070 |
| 3" | LT80 | A0077076 |
| 4" | LT94 | A0077077 |
| 6" | LT96 | A0077078 |
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
AAP Galvanised Malleable Iron Equal Tee: 1/4"
SKU: A0077067 | Model: LT08
AAP LT08: AAP Galvanised Malleable Iron Equal Tee, 1/4". Pipe Size (inch): 1/4. Pipe Size (mm): 8. Centre to End (A): 20.6.
