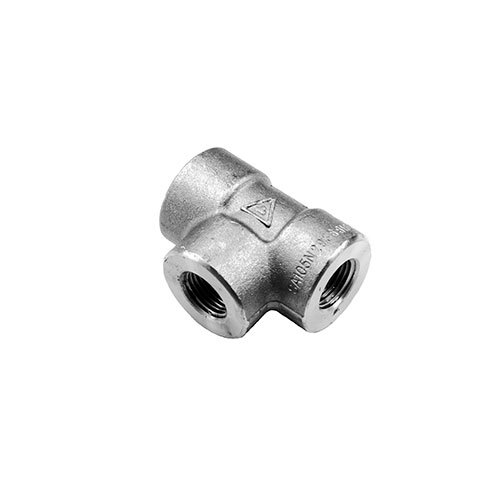

AAP 3000lb 316 Stainless Threaded Equal Tee, 1/2"
Available

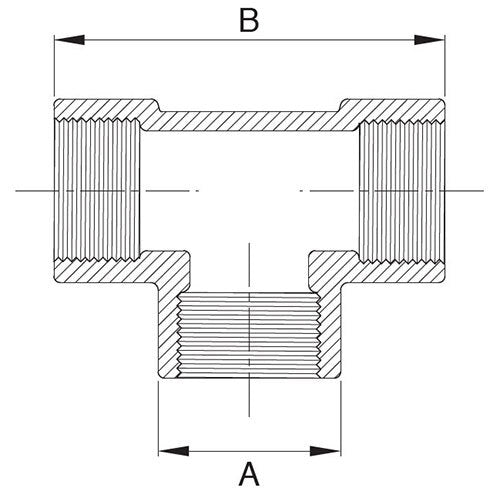

This AAP threaded equal tee is a 316/316L stainless steel forged fitting with BSPT thread. It is supplied in 6 sizes, 1/2" (15mm) to 2" (50mm). An equal tee has three threaded ports of the same size, so a pipe run can branch in one direction. This one is threaded inside at all three ports. A is the outside diameter and B is the overall length of the run.
The stainless steel high pressure fittings are rated at 3000 lb.
Where this product is used
- High pressure stainless steel pipework
- Branching a threaded stainless steel pipe run
- Taking an equal size branch off a main
Features
- 6 sizes, 1/2" (15mm) to 2" (50mm)
- 316/316L stainless steel, ASME B16.11-2009
- 3000 lb rating
- BSPT
Key specifications
| Specification | Detail |
|---|---|
| Brand | AAP |
| Product | Threaded equal tee, 316/316L stainless steel forged |
| Thread | BSPT taper threads to AS 1722.1 / ISO 7 |
| Rating | 3000 lb, threaded end |
| Applicable standard | ASME B16.11-2009 |
| Material | 316/316L stainless steel forging (ASTM A182) |
| Marking | Sizes 3/8" and under: brand only. 1/2" to 4": brand, material, heat number, B16, pressure and size |
| Sizes | 1/2" (15mm) to 2" (50mm) (6 sizes) |
Choosing the right option
Choose the size and thread to match your pipework (NPT or BSPT cannot be mixed), and check the thread gender at each end against the fitting it joins.
Related AAP products: AAP 3000lb 316 Stainless 90 Degree Threaded Elbow, BSPT, AAP 3000lb 316 Stainless Threaded Coupling, BSPT, AAP 3000lb 316 Stainless Hexagon Plug, BSPT, AAP 3000lb 316 Stainless Socket Weld Equal Tee.
| Option | Part number | SKU |
|---|---|---|
| 1/2" | PSTT15B | A0079950 |
| 1" | PSTT25B | A0079952 |
| 1-1/4" | PSTT32B | A0079953 |
| 1-1/2" | PSTT40B | A0079954 |
| 2" | PSTT50B | A0079955 |
| 3/4" | PSTT20B | A0079951 |
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
AAP 3000lb 316 Stainless Threaded Equal Tee, BSPT: 1/2"
SKU: A0079950 | Model: PSTT15B
AAP PSTT15B: AAP 3000lb 316 Stainless Threaded Equal Tee, 1/2". Pipe Size (inch): 1/2. Pipe Size (mm): 15. Outside Diameter (A): 38.
