AAP 3000lb 316 Stainless Hexagon Plug, 1/2"
Available

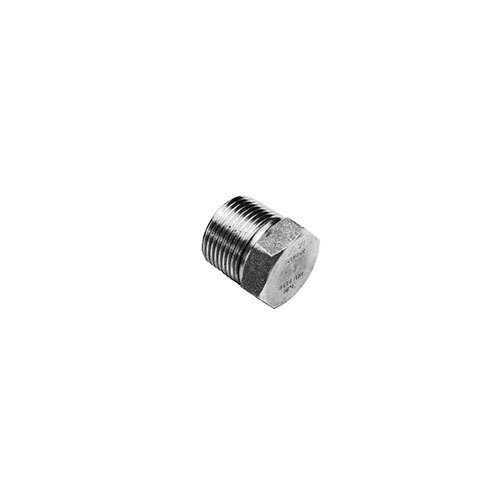

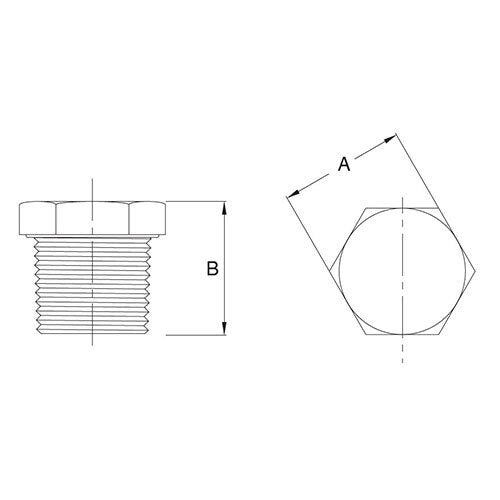

This AAP hexagon plug is a 316/316L stainless steel forged fitting with BSPT thread. It is supplied in 6 sizes, 1/2" (15mm) to 2" (50mm). A plug closes a female threaded port or the open end of a fitting. It is threaded on the outside and has a hexagon head for a spanner. A is the width of the hexagon head and B is the length.
The stainless steel high pressure fittings are rated at 3000 lb.
Where this product is used
- High pressure stainless steel pipework
- Closing an unused female threaded port
- Blanking off the end of a threaded fitting
Features
- 6 sizes, 1/2" (15mm) to 2" (50mm)
- 316/316L stainless steel, ASME B16.11-2009
- 3000 lb rating
- BSPT
Key specifications
| Specification | Detail |
|---|---|
| Brand | AAP |
| Product | Hexagon plug, 316/316L stainless steel forged |
| Thread | BSPT taper threads to AS 1722.1 / ISO 7 |
| Rating | 3000 lb, threaded end |
| Applicable standard | ASME B16.11-2009 |
| Material | 316/316L stainless steel forging (ASTM A182) |
| Marking | Sizes 3/8" and under: brand only. 1/2" to 4": brand, material, heat number, B16, pressure and size |
| Sizes | 1/2" (15mm) to 2" (50mm) (6 sizes) |
Choosing the right option
Choose the size and thread to match your pipework (NPT or BSPT cannot be mixed), and check the thread gender at each end against the fitting it joins.
Related AAP products: AAP 3000lb 316 Stainless Hexagon Head Bush, BSPT, AAP 3000lb 316 Stainless Hexagon Nipple, BSPT, AAP 3000lb 316 Stainless Threaded Coupling, BSPT, AAP 3000lb 316 Stainless 90 Degree Threaded Elbow, BSPT.
| Option | Part number | SKU |
|---|---|---|
| 1/2" | PSTP15B | A0079936 |
| 1" | PSTP25B | A0079938 |
| 1-1/4" | PSTP32B | A0079939 |
| 1-1/2" | PSTP40B | A0079940 |
| 2" | PSTP50B | A0079941 |
| 3/4" | PSTP20B | A0079937 |
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
AAP 3000lb 316 Stainless Hexagon Plug, BSPT: 1/2"
SKU: A0079936 | Model: PSTP15B
AAP PSTP15B: AAP 3000lb 316 Stainless Hexagon Plug, 1/2". Pipe Size (inch): 1/2. Pipe Size (mm): 15. Hex Head Width Flat (A): 22.
