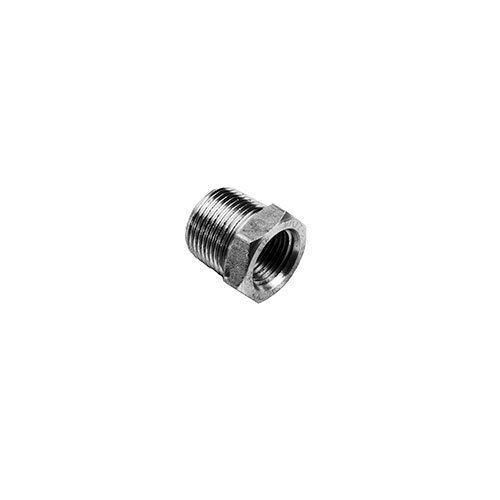

AAP 3000lb 316 Stainless Hexagon Head Bush, 1" x 1/2"

This AAP hexagon head bush is a 316/316L stainless steel forged fitting with BSPT thread. It is supplied in 6 sizes, 3/4 x 1/2" (20 x 15mm) to 2 x 1-1/2" (50 x 40mm).

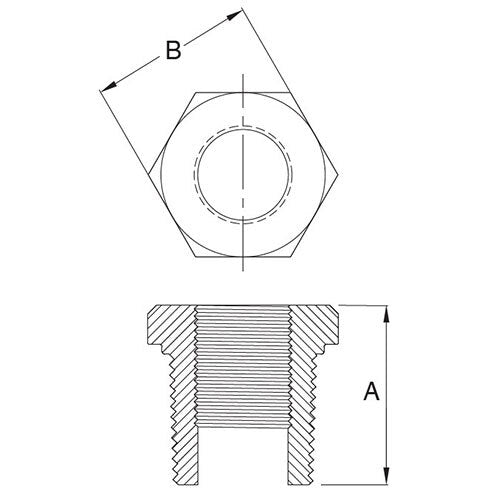

A bush reduces a threaded port from a larger size to a smaller one. The size is given as the larger thread first, then the smaller, for example 1/2 x 1/4. A threaded bush is normally male on the outside and female on the inside, and this one has a hexagon head for a spanner. A is its length and B is the width of the hexagon head. The stainless steel high pressure fittings are rated at 3000 lb.

Where this product is used

• High pressure stainless steel pipework
• Reducing a female threaded port to a smaller thread
• Stainless steel pipework where a spanner flat is needed to tighten the bush

Features

• 6 sizes, 3/4 x 1/2" (20 x 15mm) to 2 x 1-1/2" (50 x 40mm)
• 316/316L stainless steel, ASME B16.11-2009
• 3000 lb rating
• BSPT

Key specifications

Choosing the right option

Choose the size and thread to match your pipework (NPT or BSPT cannot be mixed), and check the thread gender at each end against the fitting it joins. Sizes are given as the larger thread first, then the smaller.
