AAP fixed flanged 45° elbow, 3"

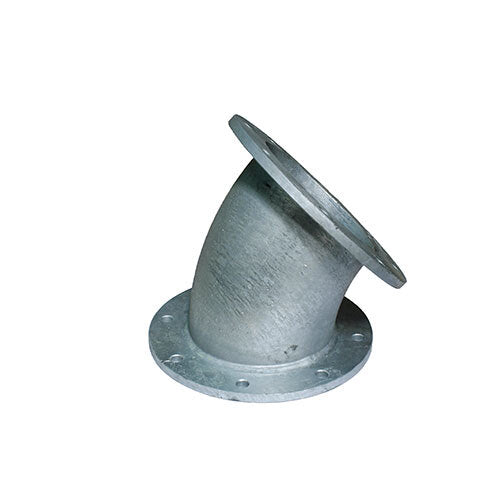

This AAP galvanised fixed flanged 45° elbow has a Table D flange on each end and turns a line through 45°. It is supplied in 5 sizes from 3" (80mm) to 8" (200mm). The flanges are fixed to the elbow. It is general purpose (SGP), in its galvanised flanged irrigation range, with a wall thickness of 4.2mm (3") to 5.8mm (8").

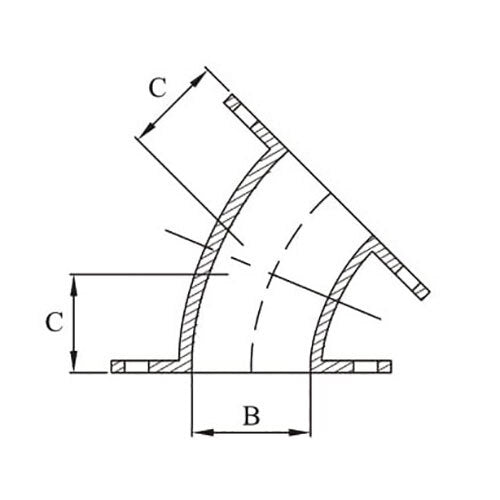

Dimension B is the bore of the fitting, which works out from the wall thickness, and C is the distance from the centre to the face of the flange.

Where this product is used

• Changing direction in flanged irrigation and water lines
• Pump station and manifold pipework
• Connecting flanged pumps, valves and tanks to a pipeline
• Dewatering and process water lines

Features

• 5 sizes from 3" (80mm) to 8" (200mm)
• Table D flange on each end
• Galvanised steel construction, general purpose (SGP)
• Wall thickness 4.2mm (3") to 5.8mm (8")
• Fixed flanges, fastener from M16 x 45 to M16 x 50

Key specifications

Choosing the right option

Choose the weight to suit the wall thickness your pipework needs: this elbow comes in both SGP and STD weight, and STD is the heavier wall.
