AAP fixed flanged 90° elbow, 3"

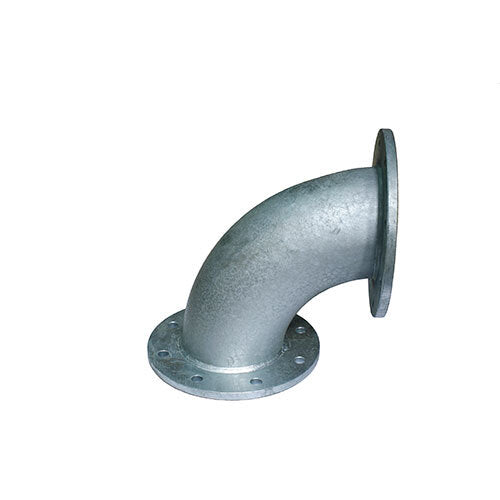

This AAP galvanised fixed flanged 90° elbow has a Table D flange on each end and turns a line through 90°. It is supplied in 5 sizes from 3" (80mm) to 10" (250mm). The flanges are fixed to the elbow. It is standard weight, also called heavy duty (STD), in its galvanised flanged irrigation range, with a wall thickness of 5.5mm (3") to 9.3mm (10").

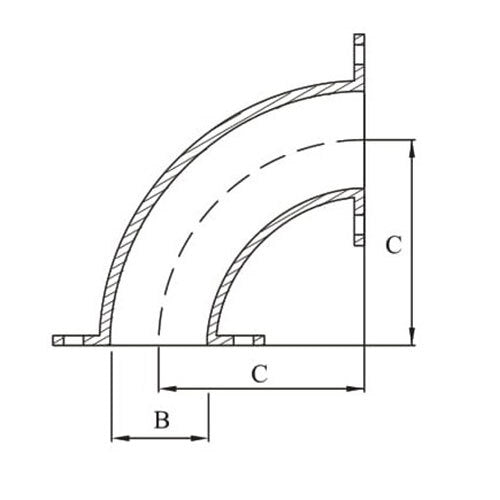

Dimension B is the bore of the fitting, which works out from the wall thickness, and C is the distance from the centre to the face of the flange.

Where this product is used

• Changing direction in flanged irrigation and water lines
• Pump station and manifold pipework
• Connecting flanged pumps, valves and tanks to a pipeline
• Dewatering and process water lines

Features

• 5 sizes from 3" (80mm) to 10" (250mm)
• Table D flange on each end
• Galvanised steel construction, standard weight (STD)
• Wall thickness 5.5mm (3") to 9.3mm (10")
• Fixed flanges, fastener from M16 x 45 to M20 x 50

Key specifications

Choosing the right option

Choose the weight to suit the wall thickness your pipework needs: this elbow comes in both SGP and STD weight, and STD is the heavier wall.
