AAP Galvanised Malleable Iron Oval Flange, 3/4"

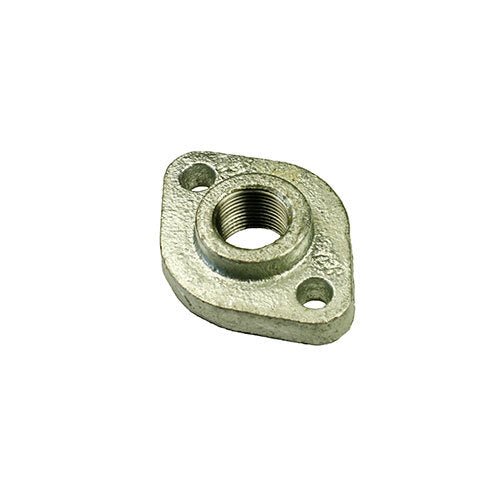

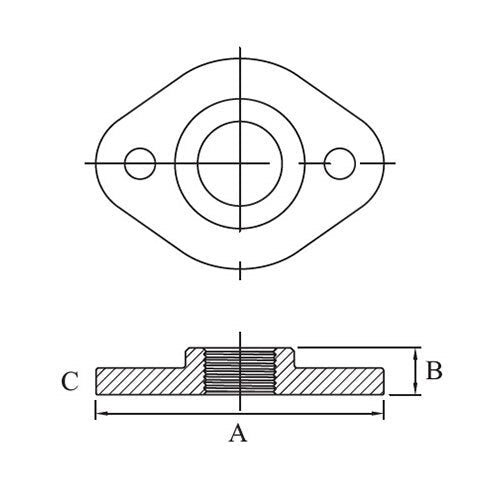

This AAP galvanised malleable iron oval flange is a hot dip galvanised fitting with BSP threads. It is supplied in 6 sizes, 1/2" (15mm) to 2" (50mm). An oval flange is a threaded flange plate with an oval outline and two bolt holes, as drawn. It screws onto a male threaded pipe to give a flat mounting face.

These fittings are made to EN 10242:1994, in blackheart malleable cast iron and delivered hot dip galvanised. Each fitting is pressure tested to EN 10242 at a minimum hydrostatic pressure of 2068 kPa (equivalent to a minimum pneumatic pressure of 500 kPa) without leakage. Recommended maximum working pressure is 1379 kPa for water and 1034 kPa for gas, steam and compressed air. Working pressures may also be limited by pressure piping codes or industry regulations.

Where this product is used

• Fixing a threaded pipe to a wall, floor or frame with two bolts
• Mounting a pipe end or fitting on a flat surface
• General galvanised threaded pipework

Features

• 6 sizes, 1/2" (15mm) to 2" (50mm)
• Malleable iron, hot dip galvanised, EN 10242:1994
• BSP threads
• Test pressure 2068 kPa

Key specifications

Choosing the right option

Choose the size to match your pipework. These fittings are BSP threaded, so check that your pipe or fitting is BSP and not NPT before you order.

Related AAP products: AAP Galvanised Malleable Iron Flange, BS 10 Table D, Drilled and Undrilled, AAP Galvanised Malleable Iron Socket, AAP Galvanised Malleable Iron Cap, AAP Galvanised Malleable Iron Square Head Plug.
