AAP Black Steel Half Socket, 4"
Available
This AAP black heavy type half socket is a mild steel fitting with BSP threads. It is supplied in 10 sizes, 3/8" (10mm) to 4" (100mm). A half socket is a short socket with a female thread. It is made to BS EN 10241:2000, as a steel threaded pipe fitting. It has a black finish. All sizes other than unions are sample tested to 5.2 MPa. These are test pressures, not working pressures.
Where this product is used
- Threaded connections where a short socket is needed
- Fabricated steel pipework with threaded connections
- General threaded steel pipework
Features
- 10 sizes, 3/8" (10mm) to 4" (100mm)
- Mild steel, black, BS EN 10241:2000
- BSP threads
- Thread: BSP (British Standard Pipe) thread, ISO 7 and AS 1722 Part 1
Key specifications
| Specification | Detail |
|---|---|
| Brand | AAP |
| Product | Black heavy type half socket, mild steel |
| Finish | Black |
| Thread | BSP (British Standard Pipe) thread, ISO 7 and AS 1722 Part 1 |
| Ends | Female (internal) thread |
| Applicable standard | BS EN 10241:2000, steel threaded pipe fittings |
| Test pressure | Sample tested to 5.2 MPa |
| Sizes | 3/8" (10mm) to 4" (100mm) (10 sizes) |
Choosing the right option
Choose the size to match your pipework. These fittings are BSP threaded, so check that your pipe or fitting is BSP and not NPT before you order.
Related AAP products: AAP Black Steel Socket, Heavy Type, AAP Black Steel Reducing Socket, AAP Black Steel Profile Socket, AAP Black Steel Cap.
| Option | Part number | SKU |
|---|---|---|
| 3/8" | SSH10 | A0075868 |
| 1/2" | SSH15 | A0075869 |
| 3/4" | SSH20 | A0075870 |
| 1" | SSH25 | A0075871 |
| 1-1/2" | SSH40 | A0075873 |
| 1-1/4" | SSH32 | A0075872 |
| 2" | SSH50 | A0075874 |
| 2-1/2" | SSH65 | A0075875 |
| 3" | SSH80 | A0075876 |
| 4" | SSH94 | A0075877 |
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
AAP Black Steel Half Socket, Heavy Type: 4"
SKU: A0075877 | Model: SSH94

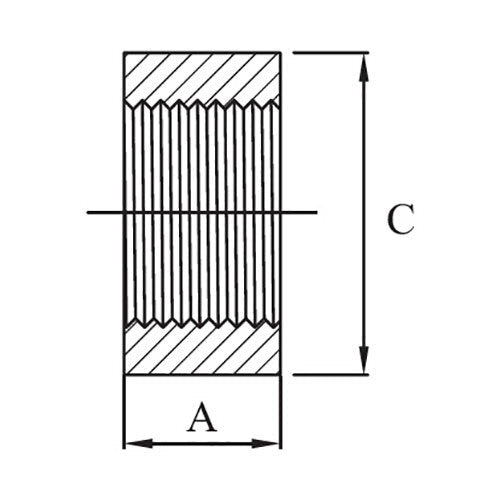

AAP SSH94: AAP Black Steel Half Socket, 4". Pipe Size (inch): 4. Pipe Size (mm): 100. Length (A): 40.4.
