1/4 x 1/8 in Galvanised Hexagon Reducing Nipple | LN0806
Available

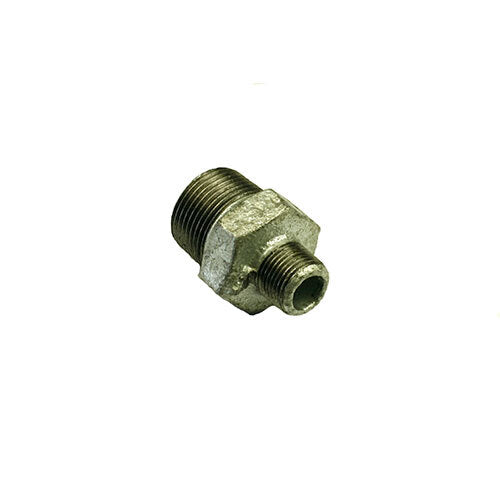

This AAP galvanised malleable iron hexagon reducing nipple is a hot dip galvanised fitting with BSP threads. It is supplied in 28 sizes, 1/4 x 1/8 in (8 x 6 mm) to 4 x 3 in (100 x 80 mm).
A hexagon reducing nipple has a male thread at each end, in two different sizes, and a hexagon in the middle for a spanner. It joins two female threaded fittings of different sizes. Sizes are listed as the larger thread first, then the smaller.
AAP states that these fittings are made to EN 10242:1994 (manufacturer-stated), in blackheart malleable cast iron and delivered hot dip galvanised (manufacturer-stated). AAP states that each fitting is pressure tested to EN 10242 at a minimum hydrostatic pressure of 2068 kPa (equivalent to a minimum pneumatic pressure of 500 kPa) without leakage (manufacturer-stated). AAP recommends a maximum working pressure of 1379 kPa for water and 1034 kPa for gas, steam and compressed air (manufacturer-stated). Working pressures may also be limited by pressure piping codes or industry regulations, so confirm the pressure and temperature for your application with AIMS before you order.
Where this product is used
- Joining two female threaded fittings of different sizes
- Reducing a galvanised threaded pipe run to a smaller size
- Water, gas, steam and compressed air lines within AAP's stated ratings
Features
- 28 sizes, 1/4 x 1/8 in (8 x 6 mm) to 4 x 3 in (100 x 80 mm)
- Malleable iron, hot dip galvanised, EN 10242:1994 (manufacturer-stated)
- BSP threads
- Test pressure 2068 kPa (manufacturer-stated)
Key specifications
| Specification | Detail |
|---|---|
| Brand | AAP |
| Product | Galvanised malleable iron hexagon reducing nipple |
| Finish | Hot dip galvanised, as prescribed by EN 10242 (manufacturer-stated) |
| Material | Blackheart malleable cast iron to ASTM A197 and ASTM A47, hot dip galvanised (manufacturer-stated) |
| Thread | BSP (British Standard Pipe) thread: parallel internal (Rp) and taper external (R), cut to AS 1722.1 and ISO 7-1 (manufacturer-stated) |
| Ends | Male (external) thread at both ends, two sizes, with a hexagon between |
| Applicable standard (manufacturer-stated) | EN 10242:1994, threaded pipe fittings in malleable cast iron (manufacturer-stated) |
| Dimensions (manufacturer-stated) | AAP lists its dimensions to BS EN 10242, BS 143 and BS 1256 (manufacturer-stated) |
| Recommended working pressure (manufacturer-stated) | 1379 kPa water; 1034 kPa gas, steam and compressed air |
| Test pressure (manufacturer-stated) | 2068 kPa hydrostatic (equivalent to 500 kPa pneumatic minimum) |
| Sizes | 1/4 x 1/8 in (8 x 6 mm) to 4 x 3 in (100 x 80 mm) (28 sizes) |
Options and part numbers
| Size | Part number | Length A (mm) | Weight (kg) |
|---|---|---|---|
| 1/4 x 1/8 in | LN0806 | 32 | 0.02 |
| 3/8 x 1/8 in | LN1006 | 38 | 0.03 |
| 3/8 x 1/4 in | LN1008 | 38 | 0.03 |
| 1/2 x 1/4 in | LN1508 | 44 | 0.05 |
| 1/2 x 3/8 in | LN1510 | 44 | 0.05 |
| 3/4 x 3/8 in | LN2010 | 47 | 0.1 |
| 3/4 x 1/2 in | LN2015 | 47 | 0.1 |
| 1 x 1/2 in | LN2515 | 53 | 0.12 |
| 1 x 3/4 in | LN2520 | 53 | 0.12 |
| 1-1/4 x 1/2 in | LN3215 | 57 | 0.22 |
| 1-1/4 x 3/4 in | LN3220 | 57 | 0.22 |
| 1-1/4 x 1 in | LN3225 | 57 | 0.22 |
| 1-1/2 x 1/2 in | LN4015 | 59 | 0.3 |
| 1-1/2 x 3/4 in | LN4020 | 59 | 0.3 |
| 1-1/2 x 1 in | LN4025 | 59 | 0.3 |
| 1-1/2 x 1-1/4 in | LN4032 | 59 | 0.3 |
| 2 x 1/2 in | LN5015 | 68 | 0.4 |
| 2 x 3/4 in | LN5020 | 68 | 0.4 |
| 2 x 1 in | LN5025 | 68 | 0.42 |
| 2 x 1-1/4 in | LN5032 | 68 | 0.42 |
| 2 x 1-1/2 in | LN5040 | 68 | 0.42 |
| 2-1/2 x 1-1/2 in | LN6540 | 75 | 0.69 |
| 2-1/2 x 2 in | LN6550 | 75 | 0.69 |
| 3 x 2 in | LN8050 | 83 | 1 |
| 3 x 2-1/2 in | LN8065 | 83 | 1 |
| 4 x 2 in | LN9450 | 92 | 1.42 |
| 4 x 2-1/2 in | LN9465 | 92 | 1.42 |
| 4 x 3 in | LN9480 | 92 | 1.42 |

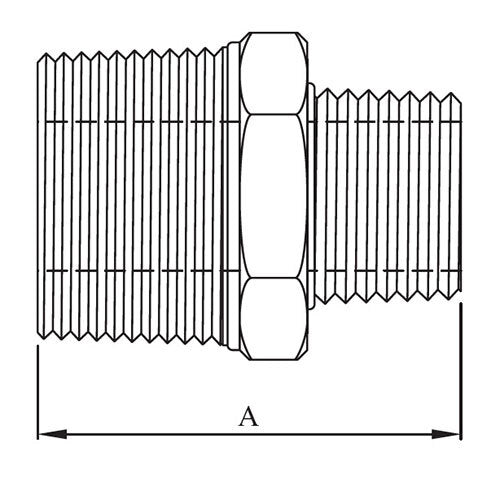

A is the overall length, as lettered on the AAP drawing, in millimetres. Sizes are larger first, then smaller. Weights are approximate, in kilograms per piece.
Selecting the right option
Choose the size to match your pipework. These fittings are BSP threaded, so check that your pipe or fitting is BSP and not NPT before you order. Sizes are listed as the larger thread first, then the smaller.
Related products
See also AAP Galvanised Malleable Iron Hexagon Nipple, AAP Galvanised Malleable Iron Hexagon Bush, AAP Galvanised Malleable Iron Reducing Socket and AAP Galvanised Malleable Iron Square Head Plug.
