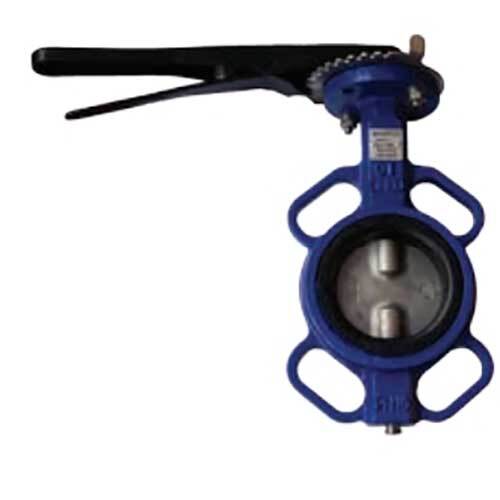

AAP NBR Butterfly Valve w/ Stainless Steel Disc

•  Resilient seat Butterfly Valves are used in a wide flange of industries including HVAC, Gas, Petrochemical, Pulp & Paper, Water & Wastewater Treatment, Brewing, Food processing, mining, Textile, and General Industry.
• They are compact and give bubble tight shut off as well as having good regulating capabilities.

 Wafer Butterfly Style

• The body design is such that it can be used with most internatifinal Fflangesincluding AS2129, BS10, ANSI, DIN & JIS Standards in sizes 50mm to 300mm.
• The wafer style is designed for inline service and relies on a flange either side of the valve to secure in the pipeline.
• *AAP 50mm to 300mm Wafer Butterfly Style EPDM version is Australian Standard Watermark (Certificate No: WMKA25460) approved and using Akzo Nobel Paint

Materials (SS Butterfly)
PART
MATERIAL
Body
CF8M
Handle
SS304
Stem
SS416
Hub Shaft
SS416
Bushing
PTFE
O-Ring
EPDM
