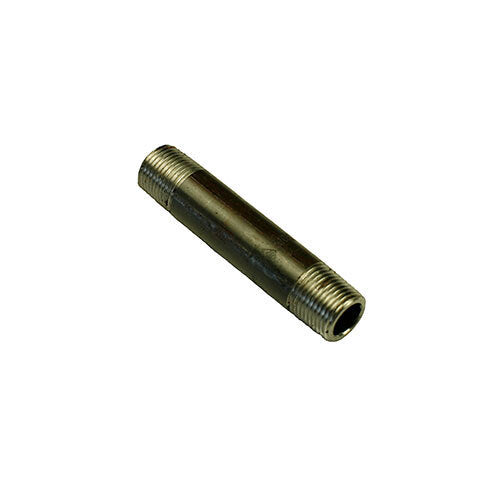

AAP Pipe Nipple, 3/8", length 50
Available
This AAP pipe nipple is Schedule 80 carbon steel pipe with NPT threads. It is supplied in 25 size and length combinations, from 1/4" (8mm), 100mm long to 2" (50mm), 150mm long. A pipe nipple is a length of pipe threaded at the ends, used to join fittings or valves where a hexagon nipple would be too short.
Where this product is used
- High pressure threaded pipework in carbon steel
- Cut length threaded pipe pieces between fittings
- Spacing valves and fittings apart in threaded pipework
Features
- 25 size and length combinations
- Schedule 80 seamless carbon steel pipe, ASTM A106 grade B
- NPT threads
- Lengths 50, 75, 100 and 150mm
Key specifications
| Specification | Detail |
|---|---|
| Brand | AAP |
| Product | Pipe nipple, Schedule 80, carbon steel |
| Pipe | ASTM A106 grade B seamless carbon steel |
| Schedule | 80 |
| Thread | NPT taper threads to ANSI B1.20.1 |
| Lengths | 50, 75, 100 and 150mm |
| Pipe sizes | 1/4 to 2" |
| Pipe table | ASME B36.10 |
| Sizes | 1/4" (8mm) to 2" (50mm) (25 sizes) |
Choosing the right option
Choose the pipe size to match your threads and the length to suit the gap.
Related AAP products: AAP 3000lb Hexagon Nipple, NPT, Black, AAP 3000lb Reducing Hexagon Nipple, NPT, Black, AAP 3000lb Hexagon Head Bush, NPT, Black, AAP 3000lb Hexagon Plug, NPT, Black.
| Option | Part number | SKU |
|---|---|---|
| 3/8" / 50 | PPN1050 | A0079644 |
| 3/8" / 100 | PPN1094 | A0079646 |
| 3/8" / 75 | PPN1080 | A0079645 |
| 3/8" / 150 | PPN1096 | A0079647 |
| 3/4" / 50 | PPN2050 | A0079655 |
| 3/4" / 100 | PPN2094 | A0079658 |
| 3/4" / 75 | PPN2080 | A0079657 |
| 3/4" / 150 | PPN2096 | A0079659 |
| 1/4" / 100 | PPN0894 | A0079641 |
| 1/4" / 150 | PPN0896 | A0079642 |
| 1/2" / 50 | PPN1550 | A0079649 |
| 1/2" / 100 | PPN1594 | A0079652 |
| 1/2" / 75 | PPN1580 | A0079651 |
| 1/2" / 150 | PPN1596 | A0079653 |
| 1" / 75 | PPN2580 | A0079662 |
| 1" / 100 | PPN2594 | A0079663 |
| 1" / 150 | PPN2596 | A0079664 |
| 1-1/4" / 100 | PPN3294 | A0079666 |
| 1-1/4" / 150 | PPN3296 | A0079667 |
| 1-1/2" / 75 | PPN4080 | A0079669 |
| 1-1/2" / 100 | PPN4094 | A0079670 |
| 1-1/2" / 150 | PPN4096 | A0079671 |
| 2" / 75 | PPN5080 | A0079673 |
| 2" / 100 | PPN5094 | A0079674 |
| 2" / 150 | PPN5096 | A0079675 |
Resources
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
AAP Pipe Nipple, Sch 80, NPT, Carbon Steel: 3/8" / 50
SKU: A0079644 | Model: PPN1050

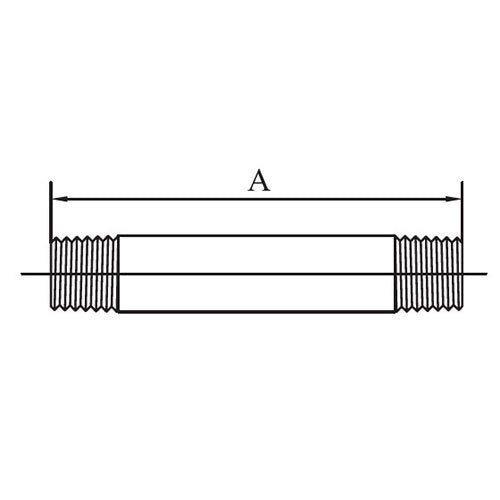

AAP PPN1050: AAP Pipe Nipple, 3/8", length 50. Pipe Size (inch): 3/8. Pipe Size (mm): 10. Length (A): 50.
