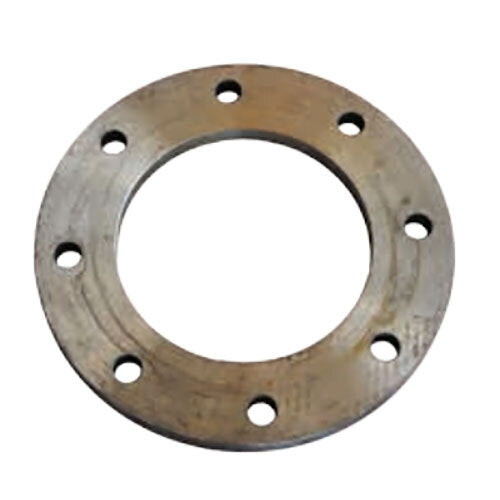

AAP plate flat face flange, 3"
Available

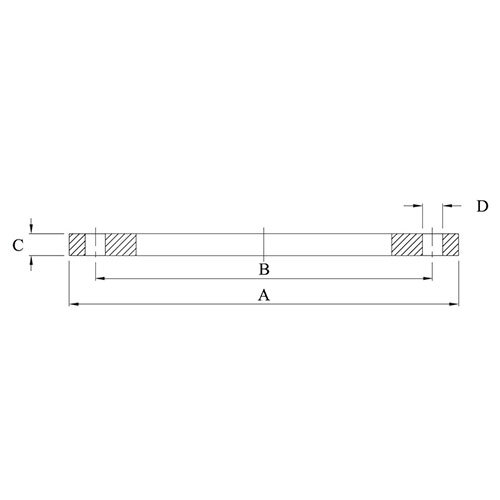

This AAP plate flat face flange is made from steel to AS4087 PN16. It is supplied in 13 sizes from 3" (80mm) to 48" (1200mm). A plate flange is a flat ring of steel with a centre bore that the pipe passes through before it is welded in place. The flat face seats against a full-face gasket. Plate flanges are mainly used for light duty, lower pressure or non-critical applications. They are cut and machined from plate steel.
Where this product is used
- General pipework joints where the flange is welded on to the pipe
- Connecting pipe to flanged valves, pumps and fittings
- Replacing or extending flanged pipework
- Water supply, irrigation, fire services and general industry pipework
Features
- 13 sizes from 3" (80mm) to 48" (1200mm)
- Made to AS4087 PN16
- Material: steel
- Flat face
- Allowable operating pressure 1,600 kPa (16 bar)
- Centre bore for welding on to the pipe
- Marked where possible with heat number, size, table, grade and dimensional standard
Key specifications
| Specification | Detail |
|---|---|
| Brand | AAP |
| Product type | Plate Flange |
| Flange type | Plate flat face flange |
| Standard | AS4087 PN16 |
| Material | Steel |
| Face | Flat face |
| Connection | Plate flange with centre bore, welded to the pipe |
| Sizes | 3" (80mm) to 48" (1200mm) (13 sizes) |
| Allowable operating pressure | 1,600 kPa (16 bar) |
| Maximum operating pressure | 1,920 kPa (19.2 bar) |
| Allowable site test pressure | 2,000 kPa (20 bar) |
| Marking | Where possible: heat number, size, table, grade and dimensional standard |
Choosing the right option
Check the pipe outside diameter against the flange bore before ordering. Match the standard and table or class to the mating flange and compare the drilling dimensions, because flanges made to different standards are not interchangeable. Gaskets and bolting are not included.
Related AAP products: AAP Blind Flat Face Flange, AS4087 PN16, AAP Plate Flat Face Flange, AS4087 PN21, AAP Plate Flat Face Flange, AS4087 PN35, AAP Blind Flat Face Flange, AS4087 PN21.
| Option | Part number | SKU |
|---|---|---|
| 3" | 4087SPN1680 | A0079079 |
| 4" | 4087SPN1694 | A0079080 |
| 6" | 4087SPN1696 | A0079081 |
| 8" | 4087SPN1698 | A0079082 |
| 10" | 4087SPN16X25 | A0079083 |
| 12" | 4087SPN16X30 | A0079084 |
| 15" | 4087SPN16X37 | A0079085 |
| 16" | 4087SPN16X40 | A0079086 |
| 18" | 4087SPN16X45 | A0079087 |
| 20" | 4087SPN16X50 | A0079088 |
| 24" | 4087SPN16X60 | A0079089 |
| 30" | 4087SPN16X75 | A0079090 |
| 48" | 4087SPN16X120 | A0079091 |
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
AAP Plate Flat Face Flange, AS4087 PN16: 3"
SKU: A0079079 | Model: 4087SPN1680
AAP 4087SPN1680: AAP plate flat face flange, 3". Pipe Size (inch): 3". Drilling Bolt Size: M16. Drilling No. Of Holes: 4.
