4 in (100 mm) Plate Flat Face Flange, AS4087 PN35 | 4087SPN3594
Available

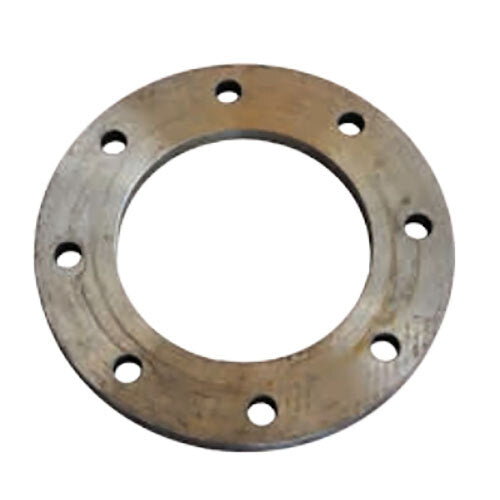

This AAP plate flat face flange is made from steel to AS4087 PN35 (manufacturer-stated). It is supplied in 7 sizes from 4 in (100 mm) to 24 in (600 mm).
A plate flange is a flat ring of steel with a centre bore that the pipe passes through before it is welded in place. The flat face seats against a full-face gasket. AAP describes plate flanges as mainly used for light duty, lower pressure or non-critical applications. They are cut and machined from plate steel.
AAP lists AS4087 PN35 (manufacturer-stated) at an allowable operating pressure of 3,500 kPa, a maximum operating pressure of 4,200 kPa and an allowable site test pressure of 4,375 kPa.
Where this product is used
- General pipework joints where the flange is welded on to the pipe
- Connecting pipe to flanged valves, pumps and fittings
- Replacing or extending flanged pipework
- Water supply, irrigation, fire services and general industry pipework
Features
- 7 sizes from 4 in (100 mm) to 24 in (600 mm)
- Made to AS4087 PN35 (manufacturer-stated)
- Material: steel
- Flat face
- Allowable operating pressure 3,500 kPa (35 bar), per the manufacturer
- Centre bore for welding on to the pipe
- Marked where possible with heat number, size, table, grade and dimensional standard
Key specifications
| Specification | Detail |
|---|---|
| Brand | AAP |
| Flange type | Plate flat face flange |
| Standard (manufacturer-stated) | AS4087 PN35 |
| Material | Steel |
| Face | Flat face |
| Connection | Plate flange with centre bore, welded to the pipe |
| Sizes | 4 in (100 mm) to 24 in (600 mm) (7 sizes) |
| Allowable operating pressure | 3,500 kPa (35 bar) |
| Maximum operating pressure | 4,200 kPa (42 bar) |
| Allowable site test pressure | 4,375 kPa (43.75 bar) |
| Marking | Where possible: heat number, size, table, grade and dimensional standard |
Options and part numbers

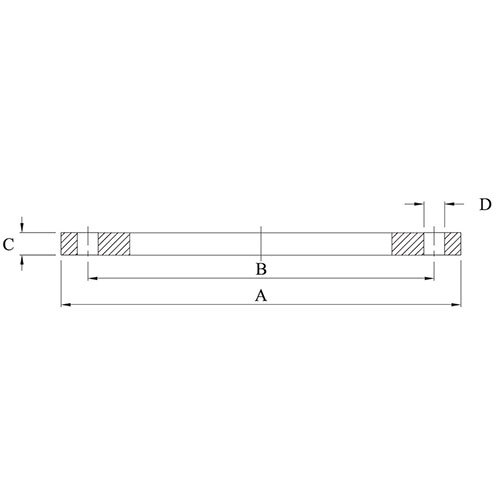

| Size | Part number | OD (mm) | PCD (mm) | Holes | Bolt size | Weight (kg) |
|---|---|---|---|---|---|---|
| 4 in (100 mm) | 4087SPN3594 | 230 | 165 | 8 | M16 | 7.44 |
| 6 in (150 mm) | 4087SPN3596 | 305 | 260 | 12 | M20 | 16.67 |
| 8 in (200 mm) | 4087SPN3598 | 370 | 324 | 12 | M20 | 25.05 |
| 10 in (250 mm) | 4087SPN35X25 | 430 | 381 | 12 | M24 | 41.42 |
| 12 in (300 mm) | 4087SPN35X30 | 490 | 438 | 16 | M24 | 53.71 |
| 16 in (400 mm) | 4087SPN35X40 | 610 | 552 | 20 | M27 | 104.9 |
| 24 in (600 mm) | 4087SPN35X60 | 850 | 781 | 24 | M33 | 289.85 |
Selecting the right option
Check the pipe outside diameter against the flange bore before ordering. Match the standard and table or class to the mating flange and compare the drilling dimensions listed on this page, because flanges made to different standards are not interchangeable. Gaskets and bolting are not part of this listing. If you are not sure what suits, contact AIMS with the standard and size of the mating flange.
Related products
See also AAP Blind Flat Face Flange, AS4087 PN35, AAP Plate Flat Face Flange, AS4087 PN16, AAP Plate Flat Face Flange, AS4087 PN21 and AAP Blind Flat Face Flange, AS4087 PN16.
