AAP Black Steel Profile Socket, 1-1/2", 34.93mm long
Available
This AAP black profile socket is a mild steel fitting with BSP threads. It is supplied in 25 sizes, 1" (25mm) to 2" (50mm). A profile socket is a socket with a female thread whose end is shaped to a profile. It is made to BS EN 10241:2000, as a steel threaded pipe fitting. It has a black finish. All sizes other than unions are sample tested to 5.2 MPa. These are test pressures, not working pressures.
Where this product is used
- Threaded connections on fabricated steel pipework
- Branch connections shaped to a pipe of the matching profile diameter
- General threaded steel pipework
Features
- 25 sizes, 1" (25mm) to 2" (50mm)
- Mild steel, black, BS EN 10241:2000
- BSP threads
- Thread: BSP (British Standard Pipe) thread, ISO 7 and AS 1722 Part 1
Key specifications
| Specification | Detail |
|---|---|
| Brand | AAP |
| Product | Black profile socket, mild steel |
| Finish | Black |
| Thread | BSP (British Standard Pipe) thread, ISO 7 and AS 1722 Part 1 |
| Ends | Female (internal) thread |
| Applicable standard | BS EN 10241:2000, steel threaded pipe fittings |
| Test pressure | Sample tested to 5.2 MPa |
| Sizes | 1" (25mm) to 2" (50mm) (25 sizes) |
Choosing the right option

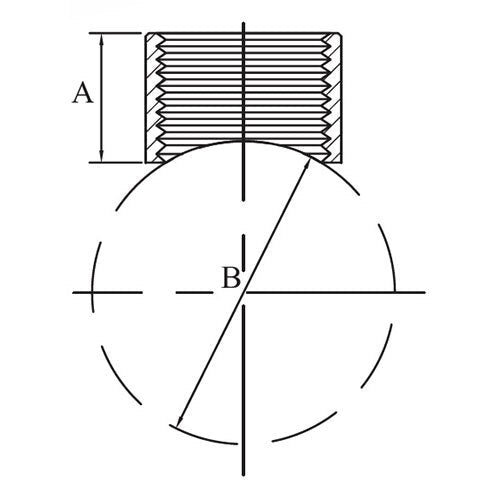

Choose the size to match your pipework. These fittings are BSP threaded, so check that your pipe or fitting is BSP and not NPT before you order. Each size comes in several profile diameters, so check the profile diameter (B) as well as the size.
Related AAP products: AAP Black Steel Half Socket, Heavy Type, AAP Black Steel Socket, Heavy Type.
| Option | Part number | SKU |
|---|---|---|
| 1" / 28.54 | SSP2596 | A0080209 |
| 1" / 29.18 | SSP2594 | A0080208 |
| 1" / 29.79 | SSP2580 | A0080207 |
| 1" / 30.28 | SSP2565 | A0080205 |
| 1-1/4" / 30.45 | SSP3296 | A0080216 |
| 1-1/4" / 30.55 | SSP3294 | A0080215 |
| 1-1/2" / 30.73 | SSP4096 | A0080222 |
| 1" / 31.21 | SSP2550 | A0080204 |
| 1-1/4" / 31.61 | SSP3280 | A0080214 |
| 1-1/2" / 32.22 | SSP4094 | A0080221 |
| 1" / 32.47 | SSP2540 | A0080203 |
| 1-1/4" / 32.48 | SSP3265 | A0080213 |
| 1" / 33.5 | SSP2532 | A0080202 |
| 1-1/2" / 33.69 | SSP4080 | A0080220 |
| 1-1/4" / 34.24 | SSP3250 | A0080212 |
| 1-1/2" / 34.93 | SSP4065 | A0080219 |
| 1" / 35 | SSP2525 | A0080201 |
| 2" / 35.99 | SSP5094 | A0080226 |
| 1-1/4" / 36.96 | SSP3240 | A0080211 |
| 1-1/2" / 37.6 | SSP4050 | A0080218 |
| 1-1/4" / 38 | SSP3232 | A0080210 |
| 2" / 38.64 | SSP5080 | A0080225 |
| 2" / 41.11 | SSP5065 | A0080224 |
| 1-1/2" / 41.5 | SSP4040 | A0080217 |
| 2" / 48.1 | SSP5050 | A0080223 |
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
AAP Black Steel Profile Socket: 1-1/2" / 34.93
SKU: A0080219 | Model: SSP4065
AAP SSP4065: AAP Black Steel Profile Socket, 1-1/2", 34.93mm long. Pipe Size (inch): 1-1/2. Pipe Size (mm): 40. Length (A): 34.93.
