AAP raised face flange, 1"
Available
This AAP raised face flange is made from 316/316L stainless steel to ANSI Class 150. It is supplied in 7 sizes from 3/4" (20mm) to 6" (150mm). A raised face flange concentrates the bolt load on a smaller gasket area, which increases the pressure the joint can contain. It is common in process plant pipework.
Where this product is used
- Process plant pipework in stainless steel
- Joints to flanged valves, pumps and vessels
- Corrosive and hygiene sensitive duties where carbon steel is unsuitable
Features
- 7 sizes from 3/4" (20mm) to 6" (150mm)
- Made to ANSI Class 150
- Material: 316/316L stainless steel
- Raised face
- Marked where possible with heat number, size, table, grade and dimensional standard
Key specifications
| Specification | Detail |
|---|---|
| Brand | AAP |
| Product type | Pipe Flange |
| Flange type | Raised face flange |
| Standard | ANSI Class 150 |
| Material | 316/316L stainless steel |
| Face | Raised face |
| Sizes | 3/4" (20mm) to 6" (150mm) (7 sizes) |
| Marking | Where possible: heat number, size, table, grade and dimensional standard |
Choosing the right option
Check the pipe outside diameter against the flange bore before ordering. Match the standard and table or class to the mating flange and compare the drilling dimensions, because flanges made to different standards are not interchangeable. Gaskets and bolting are not included.
Related AAP products: AAP Blind Flange, 316/316L Stainless Steel, Class 150, AAP Blind Flange, 316/316L Stainless Steel, Table E, AAP Blind Flange, 316/316L Stainless Steel, Table D, AAP Slip-On Flange, 316/316L Stainless Steel, Table E.
| Option | Part number | SKU |
|---|---|---|
| 1" | SSFS15031625 | A0080939 |
| 1-1/2" | SSFS15031640 | A0080941 |

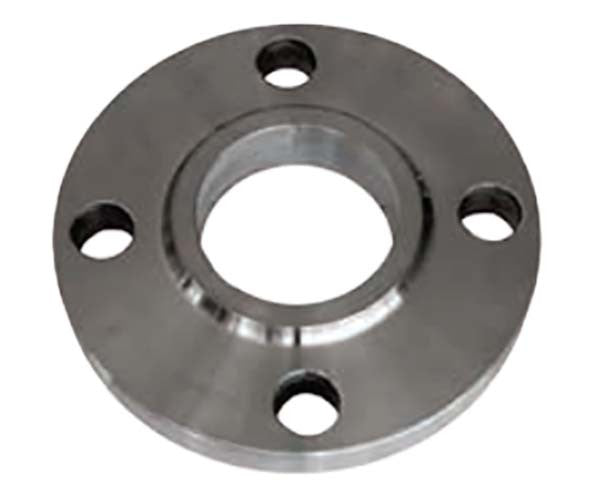

| 2" | SSFS15031650 | A0080942 |
| 3/4" | SSFS15031620 | A0080938 |
| 3" | SSFS15031680 | A0080944 |
| 4" | SSFS15031694 | A0080945 |

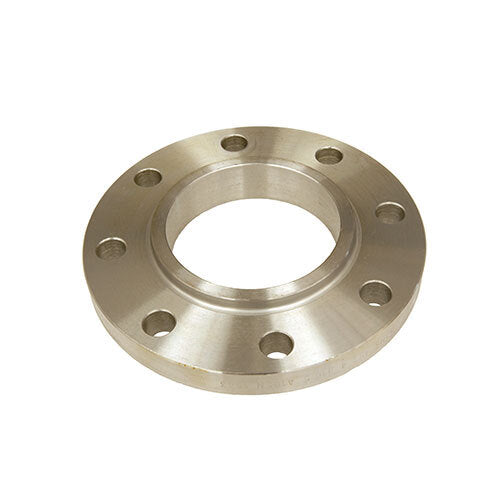

| 6" | SSFS15031696 | A0080946 |
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
AAP RF Flange, 316/316L Stainless Steel, Class 150: 1"
SKU: A0080939 | Model: SSFS15031625
AAP SSFS15031625: AAP raised face flange, 1". Pipe Size (inch): 1. Pipe Size (mm): 25. Bolt Size: 1/2.
