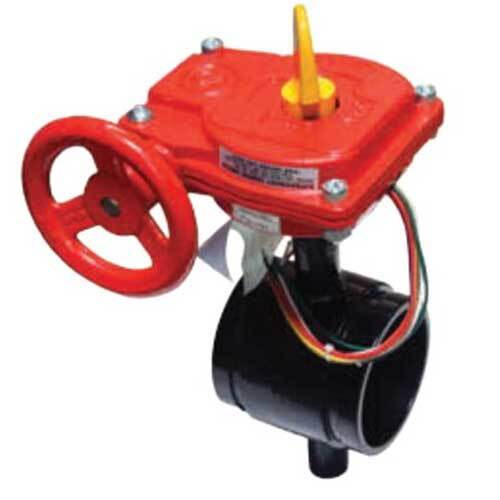

AAP Roll Groove Butterfly Valve, 2"

This AAP roll groove butterfly valve has a Nylon 11 coated ductile iron body, an EPDM encapsulated ductile iron disc and a hardened and tempered stainless steel stem. It is supplied in 4 sizes from 2" (50mm) to 6" (150mm).

A butterfly valve turns a disc on a central stem through a quarter turn: with the disc in line with the flow the valve is open, and turned across the flow it is closed. A roll groove valve has grooved ends, so it joins roll grooved pipe with grooved couplings rather than flanges. The 50mm size comes with a brass body.

Where this product is used

• Fire protection pipework with grooved joints (UL/FM approval)
• HVAC and water services in plant rooms
• Indoor grooved pipe systems
• Quick isolation on grooved pipework

Features

• 4 sizes from 2" (50mm) to 6" (150mm)
• Nylon 11 coated ductile iron body (brass body on the 50mm size)
• EPDM encapsulated ductile iron disc, stainless steel stem
• Working pressure 1,200 kPa (12 bar), maximum 120°C
• Listed by AAP as UL/FM approved
• For indoor use

Key specifications

Choosing the right option

For flanged pipework use an AAP wafer or lugged butterfly valve.

Related AAP products: AAP Wafer Butterfly Valve, NBR Seat, Stainless Steel Disc, AAP Lugged Butterfly Valve, NBR Seat, Stainless Steel Disc, AAP Wafer Butterfly Valve, EPDM Seat, Stainless Steel Disc.
