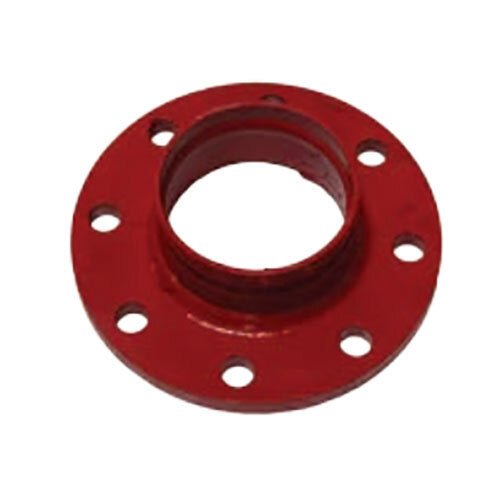

AAP Roll Groove Flange Adaptor, 4"
Available
This AAP roll groove flange adaptor is a painted ductile iron fitting for grooved pipe. It is supplied in 2 sizes, 4" (100mm) to 6" (150mm). A flange adaptor joins grooved pipe to a flanged connection. It has a drilled flange face, with the hole diameter and number of holes for each size.
The roll groove fittings are made in ductile iron to ASTM A536 Grade 65-45-12. Roll groove suits standard pipe with cut grooves, or standard and light wall pipe with rolled grooves.
Where this product is used
- Joining grooved pipe to a flanged valve, pump or pipe
- Connecting a roll groove pipe run to flanged equipment
- Services within the limits of the flanges you connect to
Features
- 2 sizes, 4" (100mm) to 6" (150mm)
- Ductile iron, ASTM A536 Grade 65-45-12
- Drilled flange face for flanged equipment
- Hole diameter and hole count for each size
Key specifications
| Specification | Detail |
|---|---|
| Brand | AAP |
| Product | Roll groove flange adaptor |
| Material | Ductile iron to ASTM A536 Grade 65-45-12 |
| Ends | Grooved connection with a drilled flange face, as drawn |
| Groove | Roll groove, for standard pipe with cut grooves or standard and light wall pipe with rolled grooves |
| Pipe outside diameter | 4" 114.3mm, 6" 165.1mm |
| Sizes | 4" (100mm) to 6" (150mm) (2 sizes) |
Choosing the right option
Choose the size to match your pipe. Check the hole count and diameter against the flange you are connecting to.
Related AAP products: AAP Roll Groove Flange Adaptor, Galvanised, AAP Roll Groove Rigid Coupling, Painted, AAP Roll Groove 90 Degree Elbow, Painted, AAP Roll Groove Equal Tee, Painted.
| Option | Part number | SKU |
|---|---|---|
| 4" | GFA94 | A0080102 |
| 6" | GFA96 | A0080103 |
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
AAP Roll Groove Flange Adaptor, Painted: 4"
SKU: A0080102 | Model: GFA94
AAP GFA94: AAP Roll Groove Flange Adaptor, 4". Pipe Size (inch): 4. Pipe Size (mm): 100. Dimension (A): 11.5.
