AAP Black Steel Square Head Plug, 1"
Available

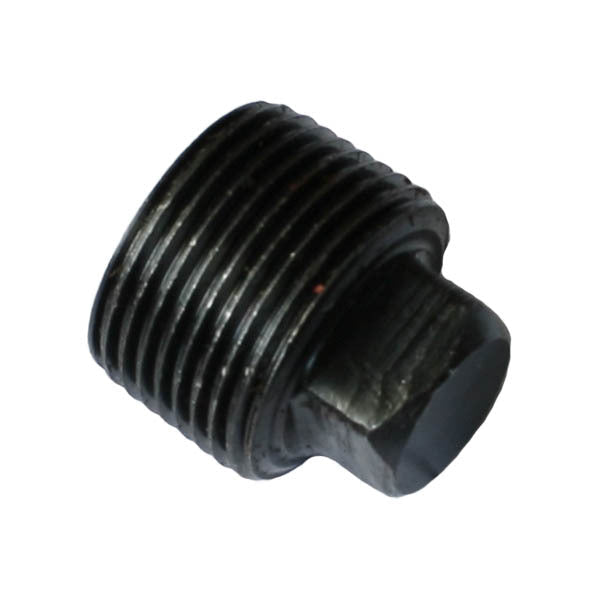

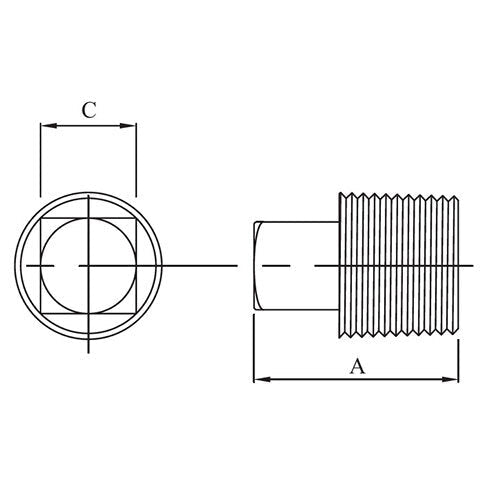

This AAP black square head plug is a mild steel fitting with BSP threads. It is supplied in 9 sizes, 1/8" (6mm) to 2" (50mm). A plug closes a female threaded port. This one is threaded on the outside (male) and has a square head for a spanner. A is the length and C the width of the square head.
It is made to BS EN 10241:2000, as a steel threaded pipe fitting. It has a black finish. All sizes other than unions are sample tested to 5.2 MPa. These are test pressures, not working pressures.
Where this product is used
- Closing an unused female threaded port
- Blanking off the end of a threaded fitting
- General threaded steel pipework
Features
- 9 sizes, 1/8" (6mm) to 2" (50mm)
- Mild steel, black, BS EN 10241:2000
- BSP threads
- Thread: BSP (British Standard Pipe) thread, ISO 7 and AS 1722 Part 1
Key specifications
| Specification | Detail |
|---|---|
| Brand | AAP |
| Product | Black square head plug, mild steel |
| Finish | Black |
| Thread | BSP (British Standard Pipe) thread, ISO 7 and AS 1722 Part 1 |
| Ends | Male (external) thread, square head |
| Applicable standard | BS EN 10241:2000, steel threaded pipe fittings |
| Test pressure | Sample tested to 5.2 MPa |
| Sizes | 1/8" (6mm) to 2" (50mm) (9 sizes) |
Choosing the right option
Choose the size to match your pipework. These fittings are BSP threaded, so check that your pipe or fitting is BSP and not NPT before you order.
Related AAP products: AAP Black Steel Hexagon Plug, AAP Black Steel Cap, AAP Black Steel Hexagon Bush, AAP Black Steel Socket, Heavy Type.
| Option | Part number | SKU |
|---|---|---|
| 1/8" | SPSQ06 | A0075818 |
| 1/4" | SPSQ08 | A0075819 |
| 3/8" | SPSQ10 | A0075820 |
| 1/2" | SPSQ15 | A0075821 |
| 3/4" | SPSQ20 | A0075822 |
| 1" | SPSQ25 | A0075823 |
| 1-1/4" | SPSQ32 | A0075824 |
| 1-1/2" | SPSQ40 | A0075825 |
| 2" | SPSQ50 | A0075826 |
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
AAP Black Steel Square Head Plug: 1"
SKU: A0075823 | Model: SPSQ25
AAP SPSQ25: AAP Black Steel Square Head Plug, 1". Pipe Size (inch): 1. Pipe Size (mm): 25. Length (A): 33.
