AAP 3000lb 90 Degree Male-Female Threaded Elbow, 1/4"
Available

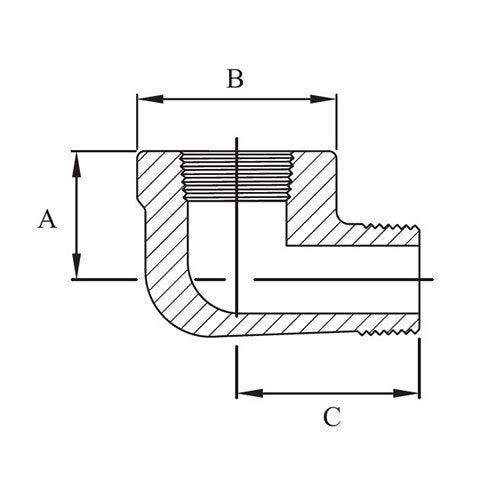

This AAP male-female 90° threaded elbow is a forged carbon steel fitting with NPT thread and a black finish. It is supplied in 8 sizes, 1/4" (8mm) to 2" (50mm). A male-female 90° elbow turns a pipe run through a right angle with a female thread at one end and a male thread at the other, so it screws straight into a female port without a nipple. A is the centre to end dimension, B is the outside diameter and C is the overall length.
The threaded high pressure fittings are rated at 3000 lb. Standards for the range include ASTM A105 carbon steel forgings.
Where this product is used
- High pressure threaded pipework in carbon steel
- Turning pipework through 90° directly into a female port
- Compact right angle connections in threaded carbon steel pipework
Features
- 8 sizes, 1/4" (8mm) to 2" (50mm)
- 3000 lb forged carbon steel, ASME B16.11-2009
- NPT, black
- Thread: NPT taper threads to ANSI B1.20.1
Key specifications
| Specification | Detail |
|---|---|
| Brand | AAP |
| Product | Male-female 90° threaded elbow, forged carbon steel |
| Thread | NPT taper threads to ANSI B1.20.1 |
| Finish | Black |
| Rating | 3000 lb, threaded end |
| Applicable standard | ASME B16.11-2009 |
| Material | Carbon steel forging (ASTM A105) |
| Marking | Sizes 3/8" and under: brand only. 1/2" to 4": brand, material, heat number, B16, pressure and size |
| Sizes | 1/4" (8mm) to 2" (50mm) (8 sizes) |
Choosing the right option
Choose the size and thread to match your pipework (NPT or BSPT cannot be mixed), and check the thread gender at each end against the fitting it joins.
Related AAP products: AAP 3000lb Hexagon Head Bush, NPT, Black, AAP 3000lb Hexagon Plug, NPT, Black, AAP 3000lb Hexagon Nipple, NPT, Black, AAP 3000lb Reducing Hexagon Nipple, NPT, Black.
| Option | Part number | SKU |
|---|---|---|
| 1/4" | PEMF08 | A0079460 |
| 1/2" | PEMF15 | A0079462 |
| 1" | PEMF25 | A0079464 |
| 1-1/4" | PEMF32 | A0079465 |
| 1-1/2" | PEMF40 | A0079466 |
| 2" | PEMF50 | A0079467 |
| 3/8" | PEMF10 | A0079461 |
| 3/4" | PEMF20 | A0079463 |
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
AAP 3000lb 90 Degree Male-Female Threaded Elbow, NPT, Black: 1/4"
SKU: A0079460 | Model: PEMF08
AAP PEMF08: AAP 3000lb 90 Degree Male-Female Threaded Elbow, 1/4". Pipe Size (inch): 1/4. Pipe Size (mm): 8. Center To End (A): 22.
