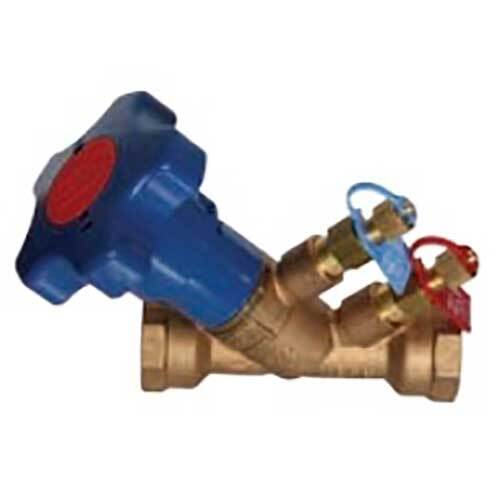

AAP Bronze Variable Balancing Valve, 1/2"

This AAP variable balancing valve is a variable orifice bronze double regulating valve with test points, Fig. 9505. It has female threaded ends and is supplied in 3 sizes, 1/2" (15mm) to 1" (25mm). A balancing valve sets the flow in a circuit and lets it be checked. The two test points on the body let a manometer read the pressure difference across the valve, and the flow is worked out from that reading and the handwheel position using the Kv table.

It gives a working pressure of 2,500 kPa (25 bar) up to 80°C and 2,000 kPa (20 bar) up to 100°C, and a working temperature of -10 to 130°C. Use below 0°C is only for water with antifreeze added and use over 100°C only for water with additives that stop boiling, and gives no pressure rating above 100°C.

Where this product is used

• Setting and checking the flow in water circuits, using the test points
• Commissioning a circuit by reading the flow at the test points

Features

• 3 sizes, 1/2" (15mm) to 1" (25mm)
• Bronze body with DR brass internals and an ABS handwheel
• Two test points for reading the pressure difference
• Flow worked out from handwheel position (Kv) and the test point reading
• Working pressure 2,500 kPa to 80°C, 2,000 kPa to 100°C

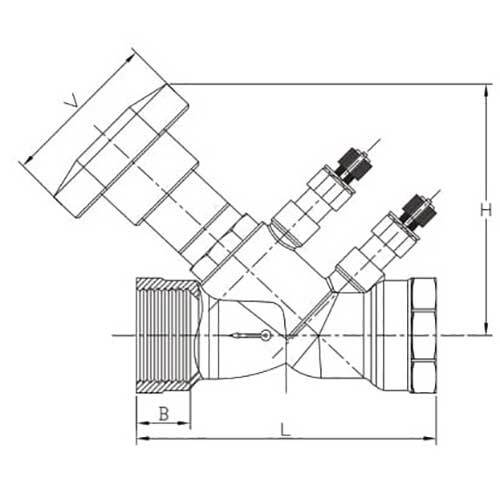

Key specifications

Choosing the right option

Check the Kv at the handwheel positions you expect to use.

Related AAP products: AAP Brass Y Strainer, Screwed, 304 Stainless Steel Mesh, AAP Brass Swing Check Valve, Screwed.
