1/2 in (15 mm) Brass Y Strainer | VBY15
Available

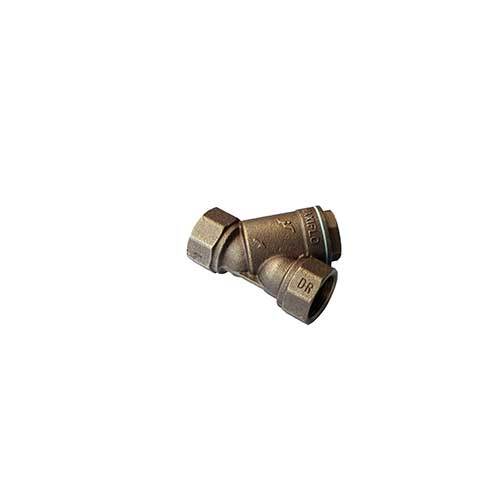

This AAP brass Y strainer has a brass body, a 304 stainless steel mesh and female threaded ends. It is supplied in 8 sizes from 3/8 in (10 mm) to 2-1/2 in (65 mm).
A Y strainer is fitted in line to protect control equipment, instruments, pumps and regulators. Fluid passes through a perforated stainless steel or wire mesh basket held in a Y shaped body. The basket traps fines and solids, which fall into the leg of the body. AAP says the leg can be flushed out while the plant is running if a ball valve is fitted to it, or the basket can be taken out for cleaning when the plant is shut down.
AAP gives a maximum working temperature of 100 degrees C and a cold working pressure of 1,600 kPa (16 bar), with a thread to AS 1722.2, and lists the valve for filtering fluid to protect inline valving (all manufacturer-stated). AAP does not state the fluids it suits, so check brass and the mesh suit yours.
Where this product is used
- Protecting inline valves from solids
- Protecting pumps, regulators and instruments
- Water and general services pipework in brass
- Small bore lines where a screwed strainer is needed
Features
- 8 sizes from 3/8 in (10 mm) to 2-1/2 in (65 mm)
- Brass body with a 304 stainless steel mesh
- Thread to AS 1722.2 (manufacturer-stated)
- Cold working pressure 1,600 kPa (16 bar), maximum 100 degrees C (manufacturer-stated)
- Protects inline valves, pumps and instruments (manufacturer-stated)
- Fine mesh, 0.8 mm at 1 mm centres (manufacturer-stated)
Materials
| Part | Material (manufacturer-stated) |
|---|---|
| Body | Brass |
| Mesh | 304 stainless steel |
Key specifications
| Specification | Detail |
|---|---|
| Brand | AAP |
| Product | Brass Y strainer |
| Body | Brass |
| Mesh | 304 stainless steel |
| Mesh diameter (manufacturer-stated) | 0.8 mm |
| Mesh centre to centre (manufacturer-stated) | 1 mm |
| Connection | Female screwed |
| Thread (manufacturer-stated) | AS 1722.2 |
| Cold working pressure (manufacturer-stated) | 1,600 kPa (16 bar) |
| Maximum temperature (manufacturer-stated) | 100 degrees C |
| Applications (manufacturer-stated) | Filtering fluid to protect inline valving |
| Sizes | 3/8 in (10 mm) to 2-1/2 in (65 mm) (8 sizes) |
Options and part numbers
| Size | Part number | Length L (mm) | Height H (mm) | Mesh dia. (mm) | Mesh centres (mm) | Weight (kg) |
|---|---|---|---|---|---|---|
| 3/8 in (10 mm) | VBY10 | 47 | 31 | 0.8 | 1 | 0.07 |
| 1/2 in (15 mm) | VBY15 | 65 | 34 | 0.8 | 1 | 0.23 |
| 3/4 in (20 mm) | VBY20 | 80 | 42 | 0.8 | 1 | 0.35 |
| 1 in (25 mm) | VBY25 | 96 | 48 | 0.8 | 1 | 0.59 |
| 1-1/4 in (32 mm) | VBY32 | 104 | 55 | 0.8 | 1 | 0.83 |
| 1-1/2 in (40 mm) | VBY40 | 116 | 66 | 0.8 | 1 | 1.19 |
| 2 in (50 mm) | VBY50 | 140 | 74 | 0.8 | 1 | 1.95 |
| 2-1/2 in (65 mm) | VBY65 | 168 | 85 | 0.8 | 1 | 2.38 |

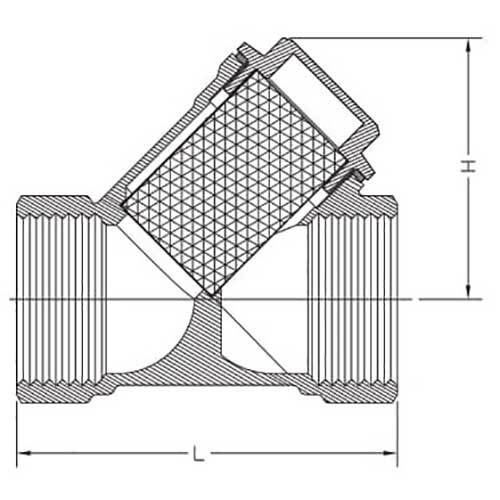

L is the length of the strainer and H is its height, as shown on the AAP drawing. AAP lists a mesh diameter and a mesh centre to centre figure in mm and does not say whether these are the hole diameter and pitch of a perforated screen or a wire diameter and pitch. Confirm the filtration size with AIMS if it matters.
Selecting the right option
Choose the size to match your pipe thread. AAP lists a mesh diameter and a mesh centre to centre figure in mm and does not say whether these are the hole diameter and pitch of a perforated screen or a wire diameter and pitch. Confirm the filtration size with AIMS if it matters. AAP also lists a stainless steel screwed Y strainer for higher temperature or corrosive duty.
Related products
See also AAP Stainless Steel Y Strainer, Screwed, 316 Mesh, AAP Cast Iron Y Strainer, Flanged, Table E, AAP Cast Iron Y Strainer, Flanged, Table D and AAP Stainless Mesh Filter, Nylon Body, ISO 228 Thread.
