AAP Stainless Mesh Filter, 1/2"
Available

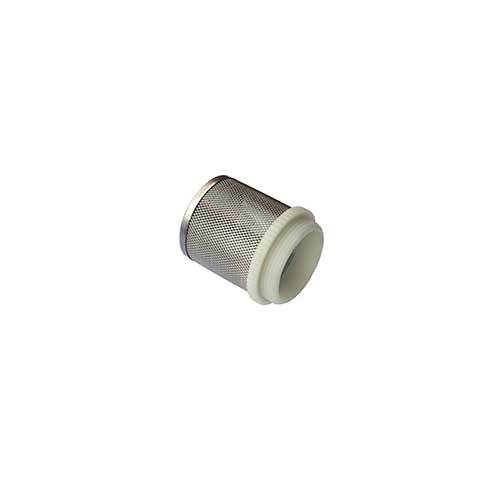

This AAP stainless mesh filter has a nylon body, a 304 stainless steel mesh and an ISO 228 thread. It is supplied in 10 sizes from 3/8" (10mm) to 4" (100mm). This is a mesh filter, a cylindrical stainless steel mesh basket on a nylon body that stops solids passing.
Check the nylon body and mesh suit your fluid and temperature.
Where this product is used
- Keeping debris out of an inlet or suction line
- Protecting pumps and equipment from solids
- Light duty filtering where a nylon body suits the fluid and temperature
Features
- 10 sizes from 3/8" (10mm) to 4" (100mm)
- Nylon body with a 304 stainless steel mesh
- ISO 228 thread
- Mesh size 1,200 micrometres up to 2", 2,000 micrometres from 2-1/2"
- Light weight, from 0.01kg
Key specifications
| Specification | Detail |
|---|---|
| Brand | AAP |
| Product | Stainless mesh filter |
| Body | Nylon |
| Mesh | 304 stainless steel |
| Thread | ISO 228 |
| Mesh size, 3/8" to 2" | 1,200 micrometres |
| Mesh size, 2-1/2" to 4" | 2,000 micrometres |
| Sizes | 3/8" (10mm) to 4" (100mm) (10 sizes) |
Choosing the right option

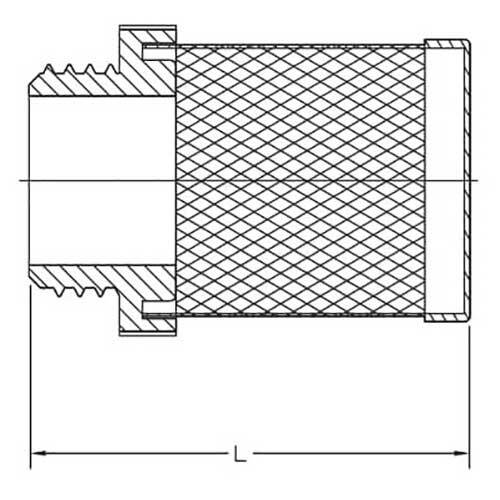

Choose the size to match your pipe thread. L is the length of the filter, as shown on the AAP drawing.
Related AAP products: AAP Brass Y Strainer, Screwed, 304 Stainless Steel Mesh, AAP Stainless Steel Y Strainer, Screwed, 316 Mesh, AAP Cast Iron Y Strainer, Flanged, Table E, AAP Brass Foot Valve, Screwed.
| Option | Part number | SKU |
|---|---|---|
| 1/2" | VSS15 | A0080512 |
| 1" | VSS25 | A0080514 |
| 1-1/4" | VSS32 | A0080515 |
| 1-1/2" | VSS40 | A0080516 |
| 2" | VSS50 | A0080517 |
| 2-1/2" | VSS65 | A0080518 |
| 3/8" | VSS10 | A0080511 |
| 3/4" | VSS20 | A0080513 |
| 3" | VSS80 | A0080519 |
| 4" | VSS94 | A0080520 |
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
AAP Stainless Mesh Filter, Nylon Body, ISO 228 Thread: 1/2"
SKU: A0080512 | Model: VSS15
AAP VSS15: AAP Stainless Mesh Filter, 1/2". Pipe Size (inch): 1/2. Pipe Size (mm): 15. Valve Length (l): 30.
